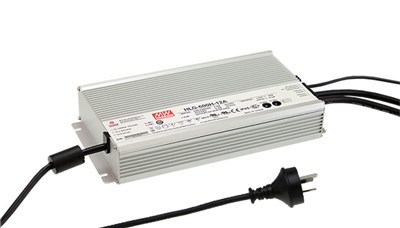

HLG-600H series is a high power AC/DC LED driver featuring dual mode constant voltage and constant current output. HLG-600H operates from 90-305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 96% and fanless design, the entire series is able to operate for -40 to +90°C case temperature under free air convection. The metal housing and IP65 or greater ingress protection level allows this series to fit both indoor and outdoor applications. HLG-600H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Applications:
• LED high-bay lighting
• Parking space lighting
• LED stage and event lighting
• LED greenhouse lighting

Specifications:
• Model: HLG-600H-12
• Rated Current: 40A
• Rated Power: 480W
• Nominal Voltage: 12VDC
• Output Function: 3 in 1 dimming
• Input Voltage: 90-305VAC or 127-431VDC
• Input Connection: Pre-wired with 3 pin AU/NZ Mains Plug
• IP Rating: IP67

SKU AM-MP4157
Model # MP4157
Barcode # 9319236726648
