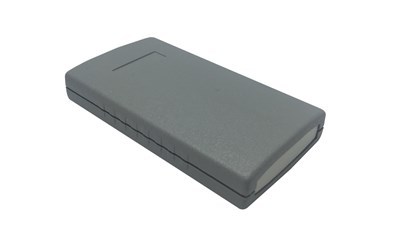

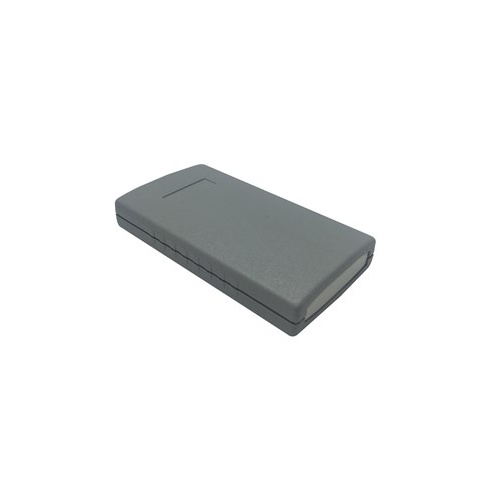

Plastic Molded Enclosures Dark Grey ABS - 90 x 50 x 16mm

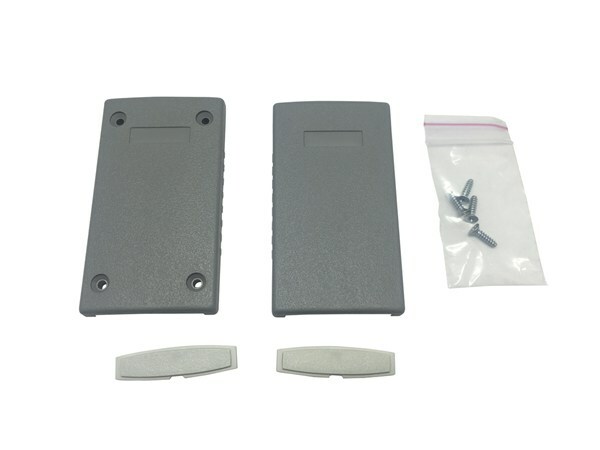

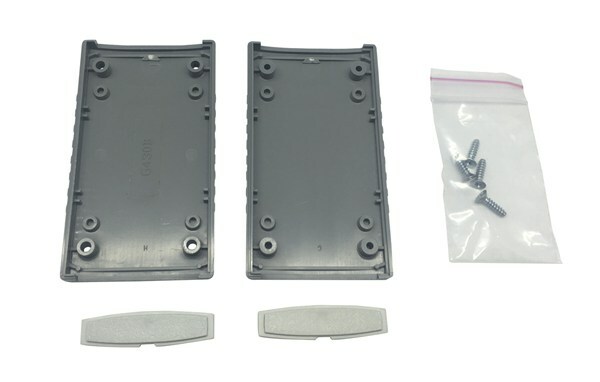

- These are available in 2 different materials.1 - High impact ABS with the base and lid moulded in light gray with dark gray end panels2 - Flame retardent ABS to UL- 94 VO with the base and lid moulded in dark gray with light gray end panels- Ideally suited for instrumentation and telecommunication equipment from hand held to lab and desk top- These cases have a two part design with a tongue and groove joint between the top and bottom of the case, with specially designed end panels of the same material.- Optional aluminium end panels are available on quantity orders- Designed to IP54 of IEC 529- The top & bottom is lightly textured which gives a non- scratch surface & maintains the high quality finish- There are guide slots provided for vertical mounting of PCBs- Bosses are provided for the horizontal mounting of PCBs- Four M- 3 screws hold the case togetherFlame Retardent to UL94 VOWidth Depth Height90 50 16
