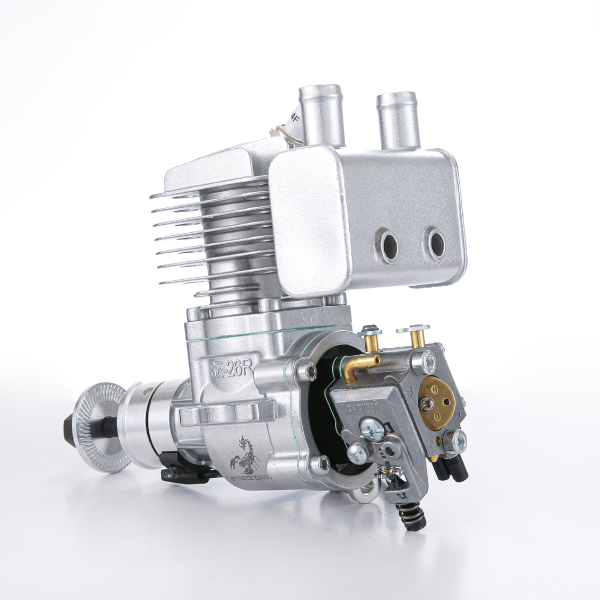

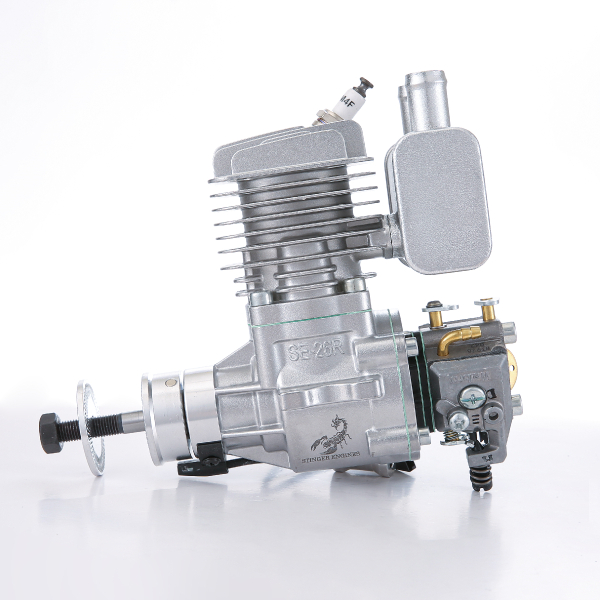

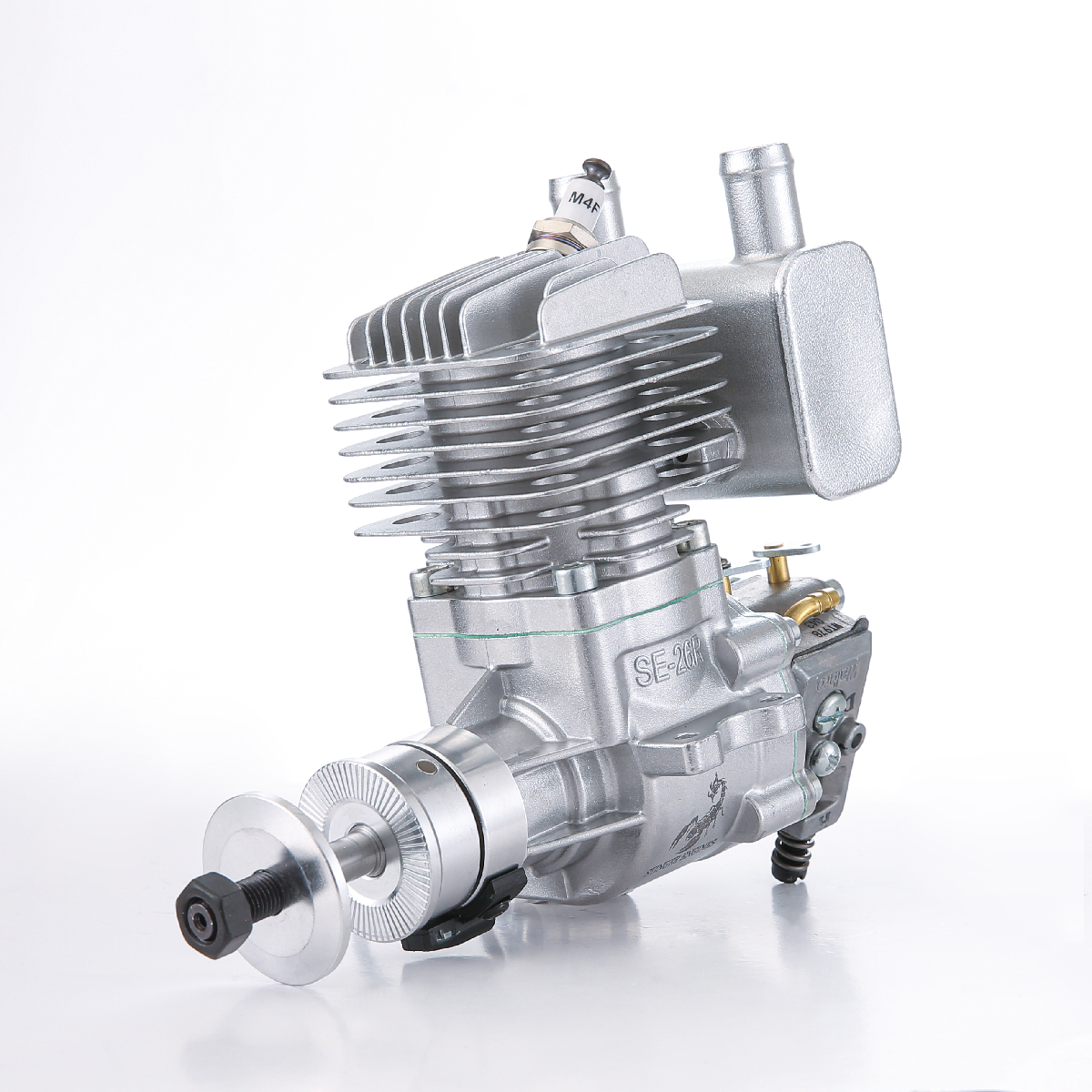

RCGF Stinger 26cc RE
Glow size：Powerful and stable !
NEW Design, More powerful, Stronger material , More precision.
Latest Design & Strong Power ！
The NEW RCGF Stinger 26cc RE is the latest design engine. Better cooling performance, Stronger Power..

Parameter

Type	2 cycle piston valve type gasoline engine for airplane
Displacement (cc)	26cc (1.59 cu in)
Bore x Stroke (mm)	1.3 in (34mm)*1.1 in (28mm)
Recommended props	16X10,17X8,17×10,18X8,18X10
Maximum Output	3.1 hp @ 2.28kw
Power supply	7V-14V

Carburetor : Walbro
Ignition : DC-CDI (Computer Controlled auto advance, electronic ignition system)
SPARK PLUG: CM6 (M14 X1,L-36mm)
Requires: Gasoline, 2-cycle oil, ignition battery & propeller
speed rang : 1800-9800rpm
Gasoline-Version : Pre-mixed Fuel, 25-40 (Gasoline):1 (recommended : 25:1 for Break in | 40:1 After run in)
Lubrication Oil : DELUXE MATERIALS POWER MODEL 2T-S OIL POWER2T-S.
Break in Propeller : 18×8 (Standard Two leafs prop)
Cooling System : Air Cooled

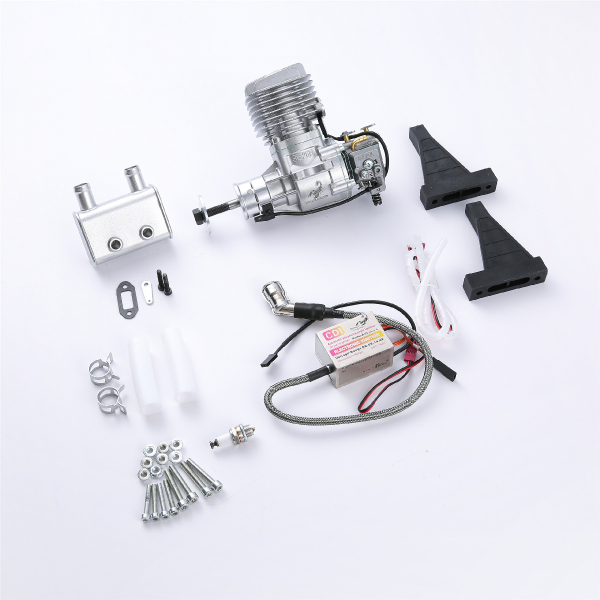

RCGF Stinger Engine package Includes: electronic CDI ignition, muffler, spark plug, gaskets, bolts, throttle arm extension & manual.

Weight:

Engine: 1.66 lb (755 g)
Muffler: 2.5 oz (70 g)
Ignition Module: 4.6 oz (130 g)
Total: Weight: 2.11 lb (955 g)

Technical Data:

Ignition Battery: 7.4V-14VNiCd or NiMH, 7.4V LiFe or 2S LiPo pack ( DO NOT use BEC, iBEC or uBEC)
Gasoline/Oil Mix: (recommended : 25:1 Break in, or 40:1 synthetic oil when run in) We reccomend DELUXE MATERIALS POWER MODEL 2T-S OIL POWER 2T-S
Replacement Spark Plug: CM6 14mm
Idle Speed: 1800 rpm/min

(RCGF26RE)
