RCGF STINGER 10cc SE Engine RCGF10SE
More infoRCGF Stinger 10cc SE
Glow size：economy and powerful
NEW ENGINE ,NEW Design, More powerful, Stronger materials .
The rear exhaust design make it fit more narrow airplanes especially the warbirds .
| Type | 2 cycle piston valve type gasoline engine for airplane |
|---|---|
| Displacement (cc) | 10cc (.61 cu in) |
| Bore x Stroke (mm) | 1.08 in (27.6mm)*0.67 in (17mm) |
| Recommended props | 13x6, 14x6,13X8,13X7 |
| Maximum Output | 1.9 hp @ 12000rpm |
| Power supply | 7.4V-14V |
- Carburetor : Walbro
- Ignition : DC-CDI (electronic ignition system)
- SPARK PLUG: M8 1/4-32
- Requires: Gasoline, 2-cycle oil, ignition battery & propeller
- speed range : 2000-12000rpm
- Gasoline-Version : Pre-mixed Fuel, 25-40 (Gasoline):1 (recommended : 25:1 for Break in | 40:1 After run in)
- Lubrication Oil : DELUXE MATERIALS POWER MODEL 2T-S OIL POWER2T-S.
- Break in Propeller : 13*7 ; 14*6 (Standard Two Blade)
- Recommended Airplane: 50 size plane,40 size plane
- Cooling System : Air Cooled

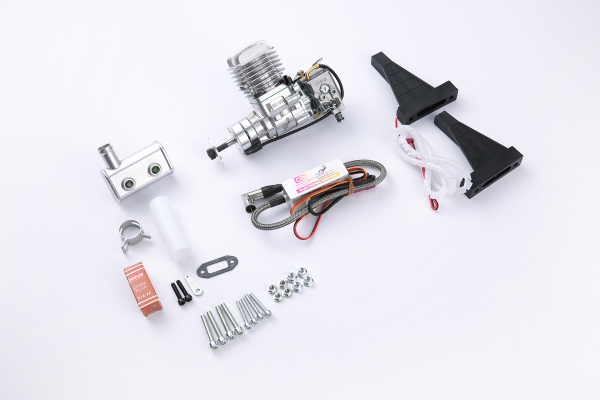

- RCGF Stinger Engine package Includes: electronic CDI ignition, muffler, spark plug, gaskets, bolts, throttle arm extension & manual.
Weight:
- Engine: 1.03 lb (468 g)
- Muffler: 1.4 oz (40 g)
- Ignition Module: 4.1 oz (115 g)
- Total: Weight: 1.37 lb (623 g)
Technical Data:
- Ignition Battery: 7.4V-14VNiCd or NiMH, 7.4V LiFe or 2S LiPo pack ( DO NOT use BEC, iBEC or uBEC)
- Gasoline/Oil Mix: (recommended : 25:1 Break in, or 40:1 synthetic oil when run in) We reccomend DELUXE MATERIALS POWER MODEL 2T-S OIL POWER 2T-S
- Replacement Spark Plug: M8 1/4-32 or equivalent
- Idle Speed: 2000 rpm/min
(RCGF10SE)
| SKU | RCGF10SE |
| Barcode # | 2000000032610 |
| Brand | RCGF STINGER |
