RCGF STINGER 35cc SE | Albury RC Models

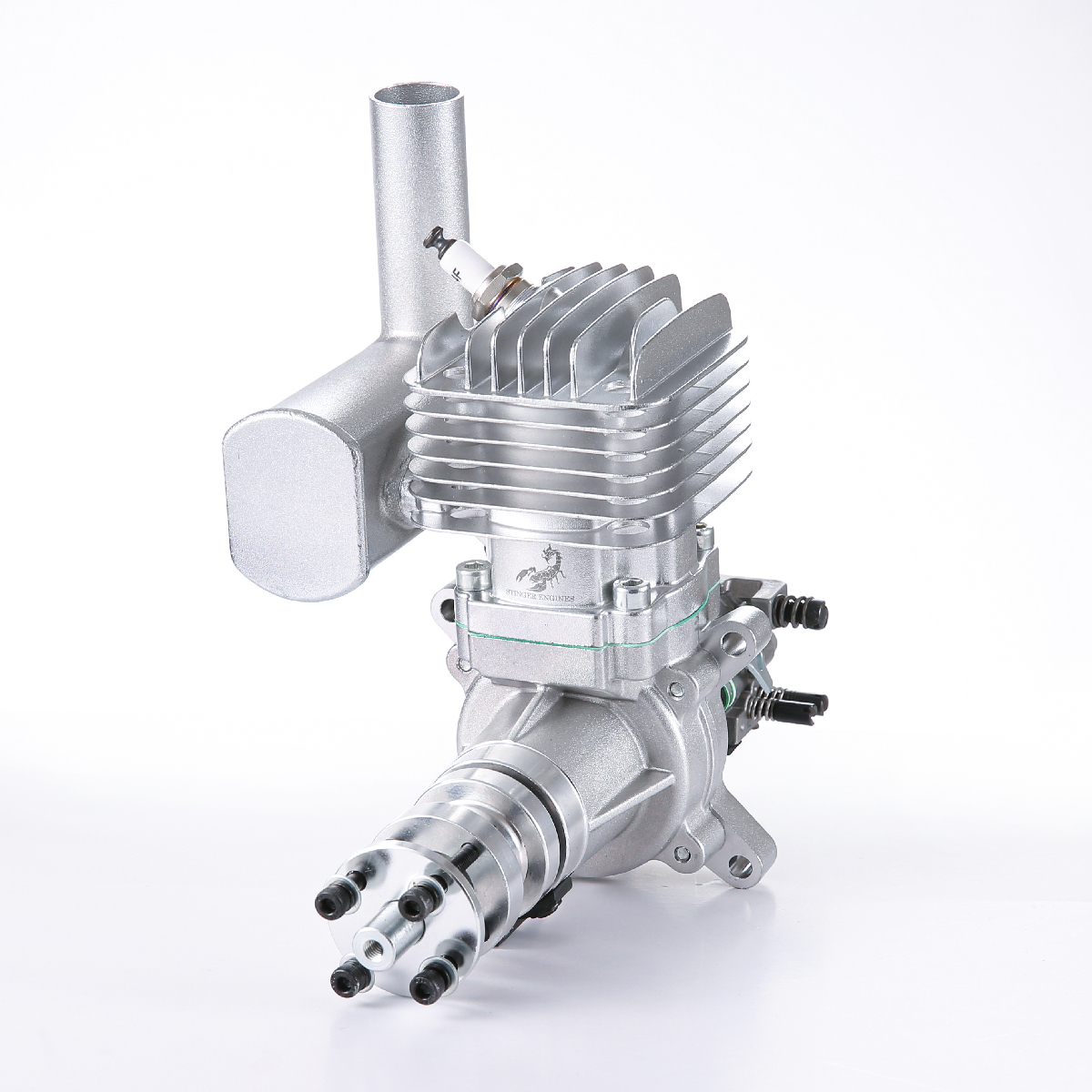

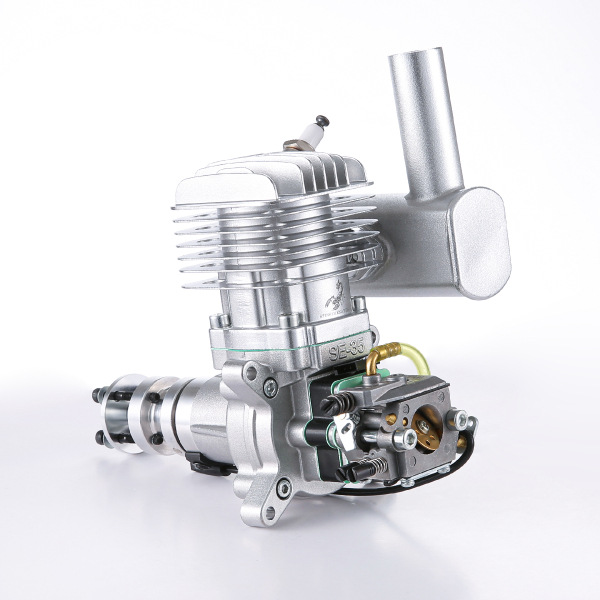

RCGF Stinger 35cc SE
Convenience and power for quarter scale!
With the New RCGF Stinger 35cc SE you get the economy of a gasoline engine in the size of a glow engine.Electronic ignition provides the spark for fast starting.
Timing automatically adjusts for peak power throughout the rpm range.
And a made-for-flight design ensures the best power-to-weight ratio for performance.

Parameter

Type	2 cycle piston valve type gasoline engine for airplane
Displacement (cc)	35cc (2.13 cu in)
Bore x Stroke (mm)	1.53 in (39mm)*1.18 in (30mm)
Recommended props	19X8,20X8,20X10
Maximum Output	4.1 hp @ 9000
Power supply	7.4V-14V

Carburetor : Walbro
Ignition : DC-CDI (Computer Controlled auto advance, electronic ignition system)
Requires: Gasoline, 2-cycle oil, ignition battery & propeller
speed rang : 1500-9000rpm(recommended : Gasoline 1 (recommended : 32:1 for real oil, or 40:1 for synthetic oil)
Gasoline-Version : Pre-mixed Fuel, 25-40 (Gasoline):1 (recommended : 25:1 for Break in | 40:1 After run in)
Lubrication Oil : DELUXE MATERIALS POWER MODEL 2T-S OIL POWER2T-S.
Suggested Break-in Prop: 19×8 (Standard Two leafs prop)
Sparking plug: NGK CM6 Type
Cooling System : Air Cooled
RCGF Stinger engine package Includes: electronic CDI ignition, muffler, spark plug, gaskets, bolts, stand off,throttle arm extension & manual.

Weight :

Engine: 2.03 lb (923 g)
Muffler: 3.4 oz (97 g)
Ignition Module: 4.4 oz (125 g)
Total: Weight: 2.52 lb (1145 g)

Technical Data:

Ignition Battery: 7.4V-14V NiCd or NiMH, 7.4V LiFe or 2S LiPo pack ( DO NOT use BEC, iBEC or uBEC)
Gasoline/Oil Mix: (recommended : 25:1 Break in, or 40:1 synthetic oil when run in) We reccomend DELUXE MATERIALS POWER MODEL 2T-S OIL POWER 2T-S
Replacement Spark Plug: NGK CM6 or equivalent
Idle Speed: 1800 rpm/min

(RCGF35SE)
