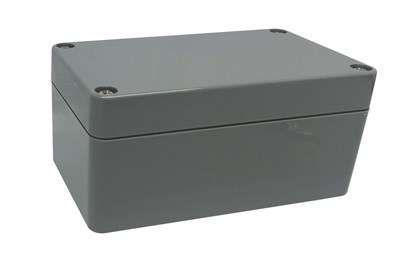

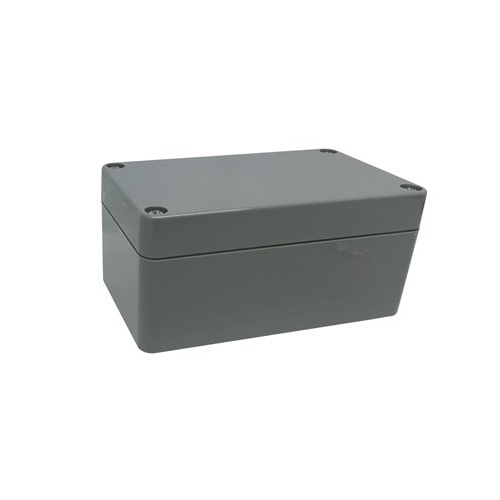

Sealed ABS Enclosure - 115 x 65 x 55mm
More info
Gainta Enclosure
- Made with ABS Material
- Moulded in dark grey
- Operating temperature: minus 20oC to 100oC

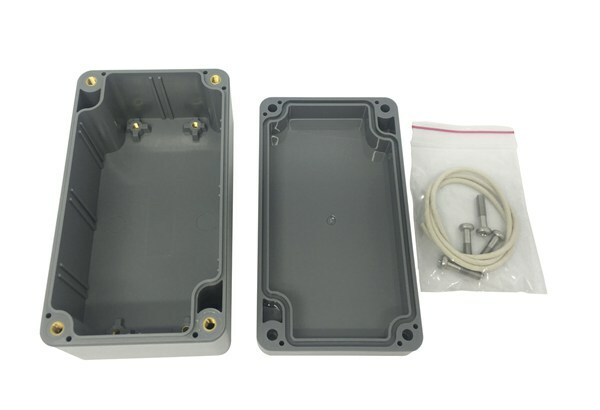

- Bosses on internal base allow fixing of PCBs horizontally, or connection of terminals etc.
- The lid and base incorporate a tongue and groove sealing systemwith a EPDM gasket- Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
- Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust
- Designed to IP65 of IEC529 and NEMS 4 (dust and hoseproof)- Internal guide slots for mounting PCB assemblies vertically
Width: 115mm
Depth: 65mm
Height: 55mm
- Made with ABS Material
- Moulded in dark grey
- Operating temperature: minus 20oC to 100oC
- Bosses on internal base allow fixing of PCBs horizontally, or connection of terminals etc.
- The lid and base incorporate a tongue and groove sealing systemwith a EPDM gasket- Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
- Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust
- Designed to IP65 of IEC529 and NEMS 4 (dust and hoseproof)- Internal guide slots for mounting PCB assemblies vertically
Width: 115mm
Depth: 65mm
Height: 55mm
(AM-HB6124)
| SKU | AM-HB6124 |
| Model # | HB6124 |
| Barcode # | 9319236034156 |
