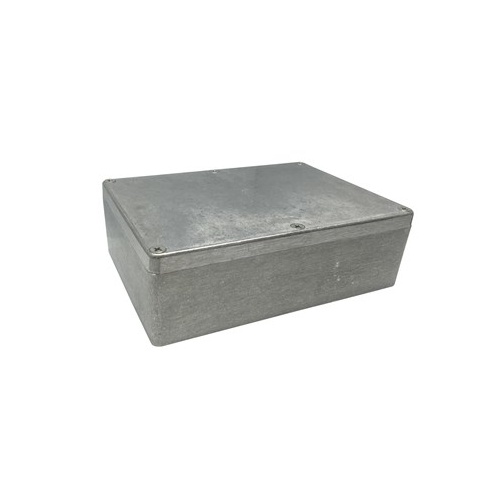

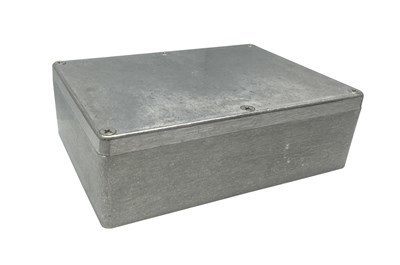

- Ideal for housing sensitive electronic assemblies, pnumatic, hydraulic and electronic devices incommercial and industrial environments providing effective shielding of EMI and RFI- Designed to IP65 of IEC529 anf NEMA 4 (dust and hoseproof)- Wall mounting holes and lid fixing screws are outside the sealing area, thus preventing the ingress ofmoisture and dust- The lid incorporates a recessed EPDM gasket- Bosses on internal base for fixing PCB's horizontally or connection of earth grounding, terminals, etc- Internal guide slots for mounting PCB assemblies vertically- Screw holes for mounting lid are roll threaded. Screws are captive and recessed- Box and lid are made in Aluminium alloy ADC- 10 to Japan Industrial Standard (JIS) in natural finish- Finishes available on special orders are painted black and epoxy coated black.Width Depth Height 171 121 55
SKU AM-HB5046
Model # HB5046
Barcode # 9319236032787
