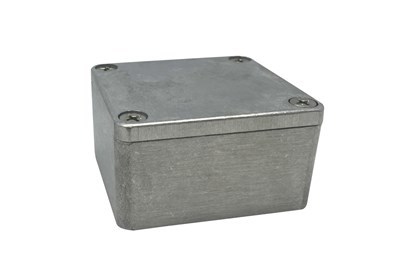

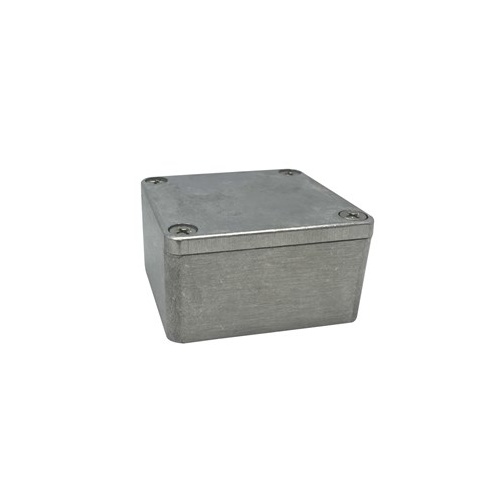

Sealed Diecast Aluminum Enclosure - 64 x 58 x 35
More info
• Ideal for housing sensitive electronic assemblies, pnumatic, hydraulic and electronic devices in
commercial and industrial environments providing effective shielding of EMI and RFI
• Designed to IP65 of IEC529 anf NEMA 4 (dust and hoseproof)
• Wall mounting holes and lid fixing screws are outside the sealing area, thus preventing the ingress of
moisture and dust

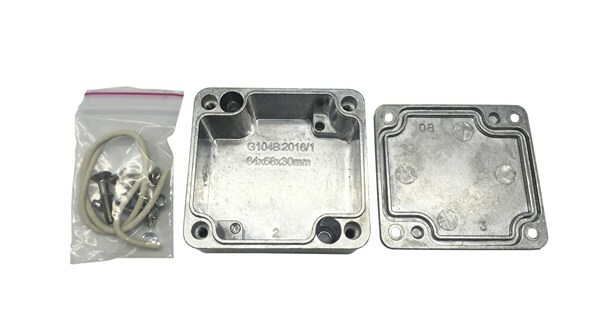

• The lid incorporates a recessed EPDM gasket
• Bosses on internal base for fixing PCB's horizontally or connection of earth grounding, terminals, etc
• Internal guide slots for mounting PCB assemblies vertically
• Screw holes for mounting lid are roll threaded. Screws are captive and recessed
• Box and lid are made in Aluminium alloy ADC- 10 to Japan Industrial Standard (JIS) in natural finish
• Finishes available on special orders are painted black and epoxy coated black.
Width Depth Height
64 58 35
commercial and industrial environments providing effective shielding of EMI and RFI
• Designed to IP65 of IEC529 anf NEMA 4 (dust and hoseproof)
• Wall mounting holes and lid fixing screws are outside the sealing area, thus preventing the ingress of
moisture and dust
• The lid incorporates a recessed EPDM gasket
• Bosses on internal base for fixing PCB's horizontally or connection of earth grounding, terminals, etc
• Internal guide slots for mounting PCB assemblies vertically
• Screw holes for mounting lid are roll threaded. Screws are captive and recessed
• Box and lid are made in Aluminium alloy ADC- 10 to Japan Industrial Standard (JIS) in natural finish
• Finishes available on special orders are painted black and epoxy coated black.
Width Depth Height
64 58 35
(AM-HB5030)
| SKU | AM-HB5030 |
| Model # | HB5030 |
| Barcode # | 9319236032732 |
