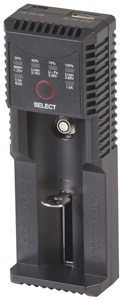

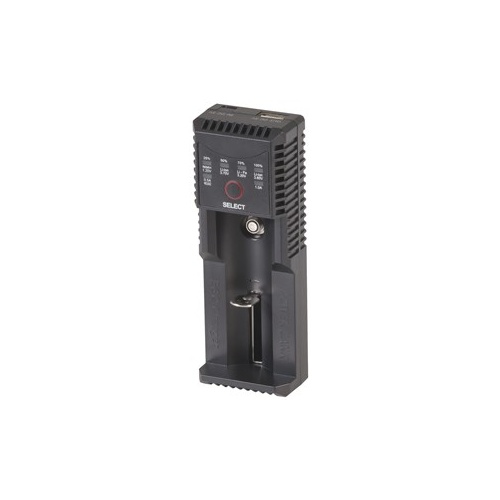

Single Channel Li-ion/LiFePo4/Ni-MH/Ni-CD/Ego Fast charger with 1A USB output

This is a versatile single-cell battery charger suitable for Li-ion, LiFePo4, Ego, Ni-MH and Ni-Cd batteries. It’s especially useful for recharging high capacity Li-ion cells such as 18650, 14500 etc. Its intelligent feedback mechanism provides current charge levels, with selectable recharge level of 500mA and 1A. It automatically protects against overcharging, over discharge, short-circuit, bad-cell, and reverse charging. It also includes a handy USB output up to 1A (not supported by Ni-MH/CD batteries).

Features:

- Fast charging (500/ 1000 mA)

- Suits Li-ion, LiFePo4, Ni-MH, Ni-CD, Ego

- USB outlet

Specifications:

Input: USB 5VDC, 1A

Battery Outputs:

        Output 1:

                1.48V - 500/1000mA Ni-MH Ni-Cd

4.2V - 500/1000mA Li-ion

3.65V - 500/1000mA LiFePo4

4.35V - 500/1000mA High Capacity Li-ion Cell

Output 2: Ego 4.2V/0.5A Max.

Output 3: USB 5VDC, 1A (Except Ni-MH/CD)

Weight: 55g

Dimensions: 120(H) x 43(W) x 30(D)mm
