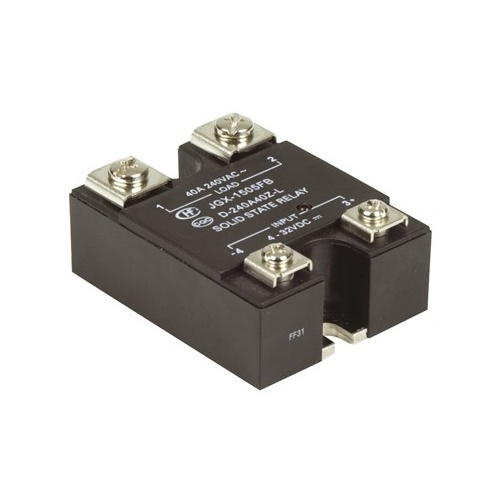

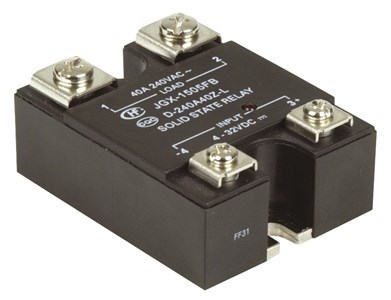

Solid State Relay 4-32VDC Input, 240VAC 40A Switching
More info
This panel mount solid state relay offers 4-32VDC input control, with a switched output rated at 240VAC/ 40Amps. Note, please refer to the data sheet Precautions 1, 2 and 3, and make sure the heat sink size is suitable for high current loads. The solid state relay has a dielectric strength of 4000VAC 50/60Hz.
Features
• 4000V dielectric strength
• Photo Isolation
• Built-In snubber
• TRIAC AC output
• Panel Mount
• DC input control
Note: Suitable for switching AC only
Features
• 4000V dielectric strength
• Photo Isolation
• Built-In snubber
• TRIAC AC output
• Panel Mount
• DC input control
Note: Suitable for switching AC only
(AM-SY4084)
| SKU | AM-SY4084 |
| Model # | SY4084 |
| Barcode # | 9319236922910 |
