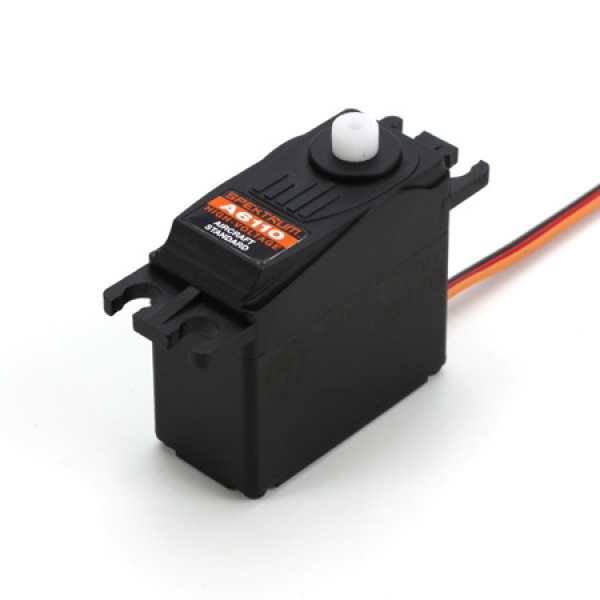

The A6110's digital precision, low deadband sensitivity and class leading .14 transit time is ideal for any 40-60 size sport aircraft. The cored motor delivers reliable power to the tight plastic gear train. Ball bearing support helps assure that accuracy continues throughout the long life of the servo. Its ability to accept the higher voltage for a 2S LiPo battery makes setup simpler and operation more efficient.

  • High Voltage
  • .14 transit time
  • Up to 76 oz-in of Torque
Size Category
Standard
Type
Digital
Application
40-60 Size Aircraft
Torque
57 oz-in (4.1 kg-cm) @ 6.0V; 76 oz-in (5.5 kg-cm) @ 7.4V
Speed
0.20 sec/60° @ 6.0V; 0.14 sec/60° @ 7.4V
Length
1.5 in (38.3mm)
Width
0.72 in (18.4mm)
Height
1.44 in (36.6mm)
Weight
1.28 oz (36.5g)
Bushing Or Bearing
Bearing
Bearing
Single
Connector Type
Z-connector
Gear Type
Nylon
Voltage
6.0V-7.4V
SKU SPMSA6110
Brand Spektrum RC
Shipping Weight 0.5000kg
