KEY FEATURES

  • Compatible with all Spektrum DSMX transmitters
  • Compact design fits most parkflyer size and larger aircraft
  • Capable of 11ms frame rates
  • Integrated telemetry with built-in ports for RPM, flight pack voltage, temperature sensors and X-bus for telemetry sensor expansion
  • Receiver pack voltage and flight log data available without the need for additional sensors
  • Dual antennas for optimal RF performance

PRODUCT SPECIFICATIONS

Type:
AR9030T 9 Channel Air Telemetry Receiver
# of Channels:
9
Modulation:
DSM2/DSMX
Band:
2.4GHz
Length:
1.91 in (48.5 mm)
Width:
1.11 in (28.3 mm)
Height:
0.82 in (20.9 mm)
Weight:
0.63 oz (17.83 g)
Voltage Range:
3.5-9V
Experience Level:
Intermediate

OVERVIEW

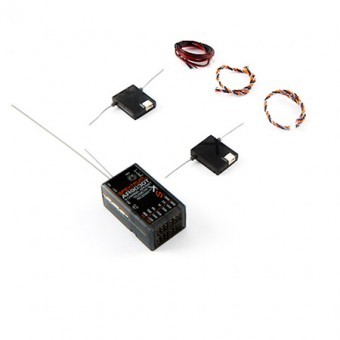

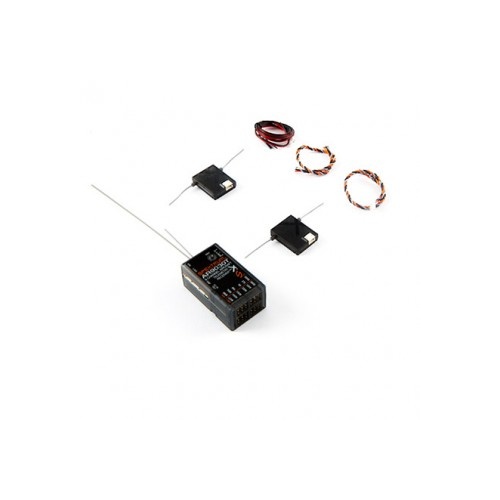

The AR9030T receiver is a feature-packed, 9-channel receiver with integrated full-range telemetry. The AR9030T features built-in connection ports for RPM, Flight Pack Voltage, and Temperature sensors as well as an X-Bus port for additional telemetry options. No sensor is required to receive flight log or receiver pack voltage telemetry data. If you have a DSMX/DSM2® transmitter capable of 11ms frame rates, the AR9030T receiver will deliver lightning-fast input-to-output response that is perfect for high-performance applications like 3D helis and airplanes. The AR9030T includes 2 DSMX remote receivers that allows you take advantage of Spektrum™ MultiLink™ technology. This patented technology eliminates the reflected signal fading and antenna blind spots that can affect all 2.4GHz systems.

SKU SPMAR9030T
Barcode # 605482630952
Brand SPEKTRUM
Shipping Weight 1.0000kg
