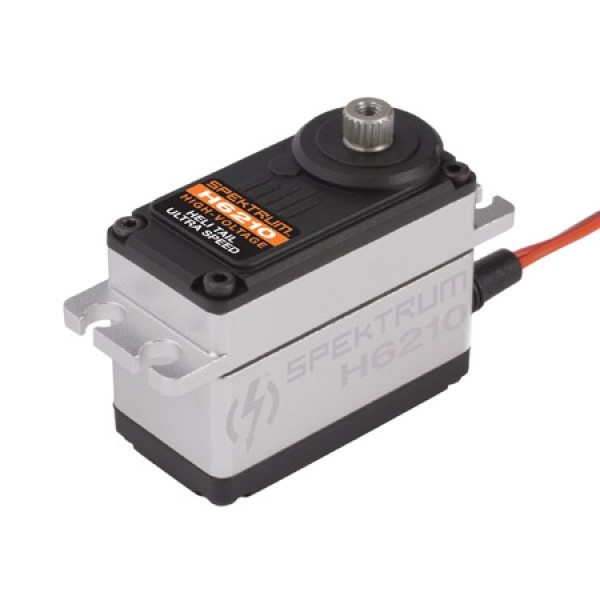

This is a high voltage, digital, high speed tail servo for 550 to 700 size helis. These servos allow for clean wiring and are purpose-built for tail control on high performance RC helicopters.

  • Quick release for servo leads simplify wiring and maintenance
  • Designed for tail rotor control on RC helicopters
  • Quick release servo leads
  • HV compatible (up to 8.4V)
  • 0.03 sec/60° transit speed 8.4V
  • Metal gears
  • Aluminum center section case
  • Frequency: 333Hz
  • Center Position: 1520µs
Size Category
Standard
Type
Digital
Application
550- to 700-class helis
Torque
79.0 oz-in (5.69 kg-cm) @ 6.0V; 107 oz-in (7.7 kg-cm) @ 7.4V
Speed
0.04 sec/60 deg @ 6.0V; 0.03 sec/60 deg @ 7.4V
Length
1.61 in (40.9mm)
Width
0.82 in (20.9mm)
Height
1.25 in (31.8mm)
Weight
2.2 oz (62.4 g)
Bushing Or Bearing
Bearing
Bearing
Dual
Motor Type
Coreless
Connector Type
Universal
Gear Type
Metal
Voltage
4.8 - 7.4V
SKU SPMSH6210
Brand Spektrum RC
