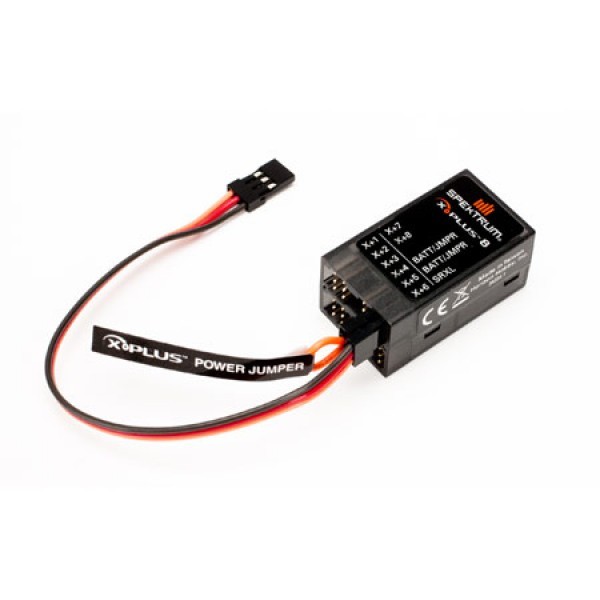

The X-Plus 8 module is designed to allow expansion of up to 8 servos for non-control surface functions such as bomb drops, lights, winches, retractable landing gear, and many more. The X-Plus 8 is compatible with Spektrum™ X-Plus transmitters and receivers. The X-Plus 8 module offers the option to power the connected servos via dual auxiliary battery ports with separate batteries and switch harnesses (sold separately) independent of the receiver. The X-Plus 8 module can also be powered inclusive of the receiver by using the included jumper through either of the dual BATT/JMPR ports.

Applications
Scale modelers with complex aircraft, ships, or surface applications will enjoy the easy programming and functions of the X-Plus 8 module using X-Plus compatible transmitters AirWare™ software. Modelers will be able to select 2 position, 3 position or potentiometer adjustment through their X-Plus transmitter. After selecting the specific switch or port, AirWare software will allow the individual servo adjustment of each X-Plus channel‘s travel adjust, sub trim, reversing, and speed.

  • 8-channel expansion
  • Dual battery ports
  • Included Jumper offers option of using receiver power
  • Allows fine tuning of 8 servos on non-critical controls (bomb drops, lights, winches, gear, etc.)
Type
X-Plus Module
# of Channels
8
Length
1.61 in (41mm)
Width
0.91 in (23mm)
Height
0.79 in (20mm)
Weight
0.42 oz (11.9 g)
Voltage Range
3.5-9.6V
SKU SPMXP8000
Brand Spektrum RC
Shipping Weight 2.0000kg
