Standard (High Power) D.C. Motors 18800 RPM
More info
Standard (High Power) D.C. Motors
Astonishing speed and power from these compact ferrite magnet types.
All units feature hard steel drive shafts, long life design and are built in an ISO 9002 quality environment.
Cat No.
Voltage (V)
No load 12.0
Speed (RPM) 18800
Current (AMP) 2.6
Operating Range (V) 6-12
At Stall
Torque (kg/cm) 4.9
Current (AMP) 92
At Max Efficiency
Efficiency (%) 71
Power (W) 107
Speed (RPM) 15520
Torque (kg/cm) .67
Current (A) 12.8

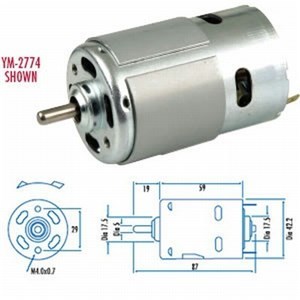

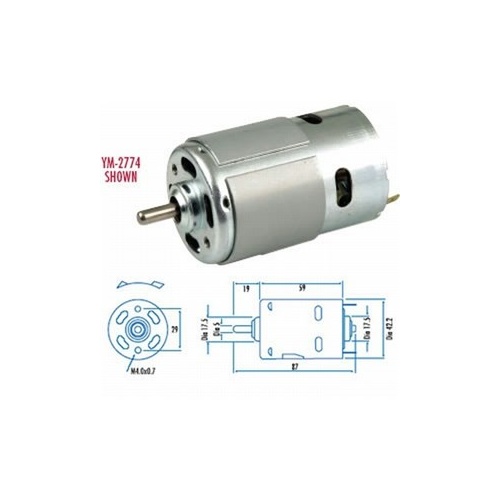

Dimensions
Diameter (mm) 42
Total Length (mm) 78
Shaft Length (mm) 19
Shaft Diameter (mm) 5.0
Mounting Thread M4
Astonishing speed and power from these compact ferrite magnet types.
All units feature hard steel drive shafts, long life design and are built in an ISO 9002 quality environment.
Cat No.
Voltage (V)
No load 12.0
Speed (RPM) 18800
Current (AMP) 2.6
Operating Range (V) 6-12
At Stall
Torque (kg/cm) 4.9
Current (AMP) 92
At Max Efficiency
Efficiency (%) 71
Power (W) 107
Speed (RPM) 15520
Torque (kg/cm) .67
Current (A) 12.8
Dimensions
Diameter (mm) 42
Total Length (mm) 78
Shaft Length (mm) 19
Shaft Diameter (mm) 5.0
Mounting Thread M4
(AM-YM2774)
| SKU | AM-YM2774 |
| Model # | YM2774 |
| Barcode # | 9319236907238 |
