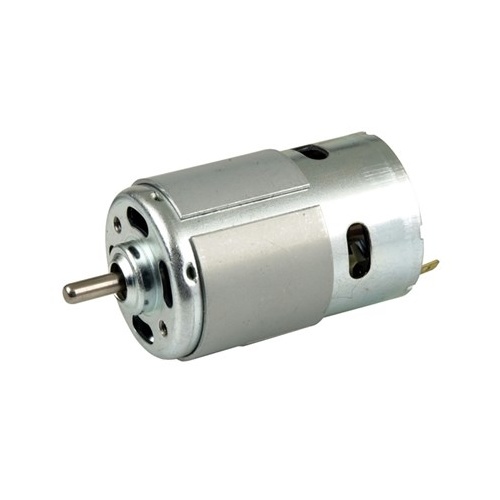

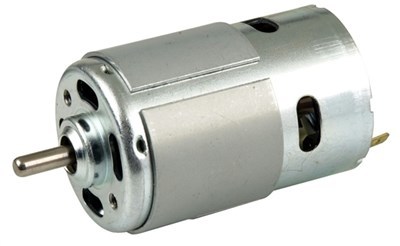

Standard (High Power) D.C. Motors 9700 RPM
More info
Astonishing speed and power from these compact ferrite magnet types.
All units feature hard steel drive shafts, long life design and are built in an ISO 9002 quality environment.
Cat No.
Voltage (V)
No load 12.0
Speed (RPM) 9700
Current (AMP) 1.3
Operating Range (V) 6-18
At Stall
Torque (kg/cm) 6.0
Current (AMP) 57
At Max Efficiency
Efficiency (%) 73
Power (W) 52
Speed (RPM) 8490
Torque (kg/cm) .60
Current (A) 6.0
Dimensions
Diameter (mm) 42
Total Length (mm) 85
Shaft Length (mm) 19
Shaft Diameter (mm) 5.0
Mounting Thread M4
All units feature hard steel drive shafts, long life design and are built in an ISO 9002 quality environment.
Cat No.
Voltage (V)
No load 12.0
Speed (RPM) 9700
Current (AMP) 1.3
Operating Range (V) 6-18
At Stall
Torque (kg/cm) 6.0
Current (AMP) 57
At Max Efficiency
Efficiency (%) 73
Power (W) 52
Speed (RPM) 8490
Torque (kg/cm) .60
Current (A) 6.0
Dimensions
Diameter (mm) 42
Total Length (mm) 85
Shaft Length (mm) 19
Shaft Diameter (mm) 5.0
Mounting Thread M4
(AM-YM2776)
| SKU | AM-YM2776 |
| Model # | YM2776 |
| Barcode # | 9319236907245 |
