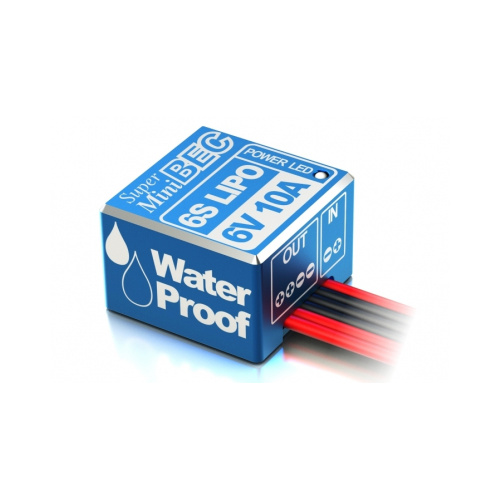

The BEC is a voltage regulator that supplies a constant voltage to the receiver and servo. For ESC with a built-in Linear BEC, it will likely have only a limited ability to supply power to your receiver and servos without overheating protection functions. If you are using a 4 cells LiPo battery or more than a 12 cells NiCd/NiMH battery, you should consider using SkyRC 6S 10A Super Mini S-BEC. This S-BEC is small and light with wide input voltage from 6-25.2V. It is a waterproof BEC with over-current and over-heat protection functions. What's more, it is common for a switching BEC to attain 90% or higher efficiency.

Compact size(23x23x15mm) and light weight(30g)
Wide input voltage from 6-25.2V (2-6 cells LiPo battery or 5-18 cells
NiCd/NiMH battery)
Over-current and over-heat protection functions
Fully-enclosed design for waterproof(IP67)
90% or higher efficiency
Less electromagnetic interference

Weight 30g
Input Voltage 6-25.2V DC
Input Leakage Current =50ua
Input Idle Current =20ua
Output Current 10A
Output Voltage 6V +/- 0.1V
Working Temp -20-65
Storage Temp -10-70?
Protection IP54
Over Heat Protection

SKU SK-600055
Barcode # SK-600055
Brand SKYRC
