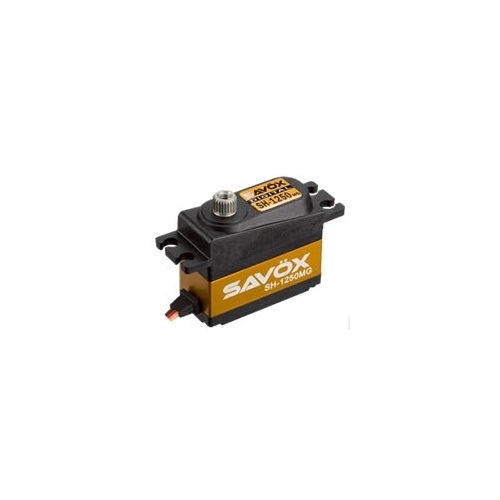

This coreless motor was made with a light weight design which provides smoother, faster, and more efficiet oppertion. The SH-1250MG is the super torque servo you need in any 1/12th scale pan car. With its metal case design it not only looks awesome but allows for cooler and smoother opertiong temperatures. This servo deals out a wopping 63.9 oz. of pure torque!

Features:

  • The coreless motor and light weight design provides smoother, faster, and more efficient operation.
  • The metal case design not only looks awesome but also allows for cooler and smoother operating temperatures.
  • Metal gears form a solid framework for precise control and operation.
  • Supports digital and analog control signals
  • Ideal for rudder on 450 level helis, CCPM on 500 level helis, and steering servo on 1/12th scale cars.

Dimensions(mm): 35.0X15.0X29.2
Weight(g): 29.6
Speed(@4.8V sec/60): .16
Torque(@4.8V oz-in): 30.6
Speed(@6.0V sec/60): .11
Torque(@6.0V oz-in): 63.9
Gear: Metal
Bearing: 2BB
Case: Aluminum
25 Tooth Spline
Frequency: 250-333hz
Pulse Width Frequency: 1520

Dimensions(mm): 35.0X15.0X29.2
Weight(g): 29.6
Speed(@4.8V sec/60): .16
Torque(@4.8V oz-in): 30.6
Speed(@6.0V sec/60): .11
Torque(@6.0V oz-in): 63.9
Gear: Metal
Bearing: 2BB
Case: Aluminum
Running current (at no load): 80 mA @ 4.8V
Running current (at no load): 100 mA @ 6.0V
Stall current (at locked): 800 mA @ 4.8V
Stall current (at locked): 1000 mA @ 6.0V
Idle current (at stopped): 6 mA @ 4.8V
Idle current (at stopped): 6 mA @ 6.0V
Limit angle: 210°±10°
Connector wire gauge: ?26 AWG
Connector wire length: 250 ±5 mm
Horn gear spline: 25T
Control system: Pulse width modification
Amplifier type: Digital Controller
Operating Travel: 110° (when1000→2000 μsec)
Neutral position: 1500 μsec
Dead band width: 5 μsec
Rotating direction: Counterclockwise (when1500→2000 μsec)
Pulse width range: 800→2200 μsec
Maximum travel: Approx 154°(when800→2200 μsec)



SKU SAV-SH1250MG
Barcode # 4710006990293
Brand SAVOX
Shipping Weight 0.2000kg
