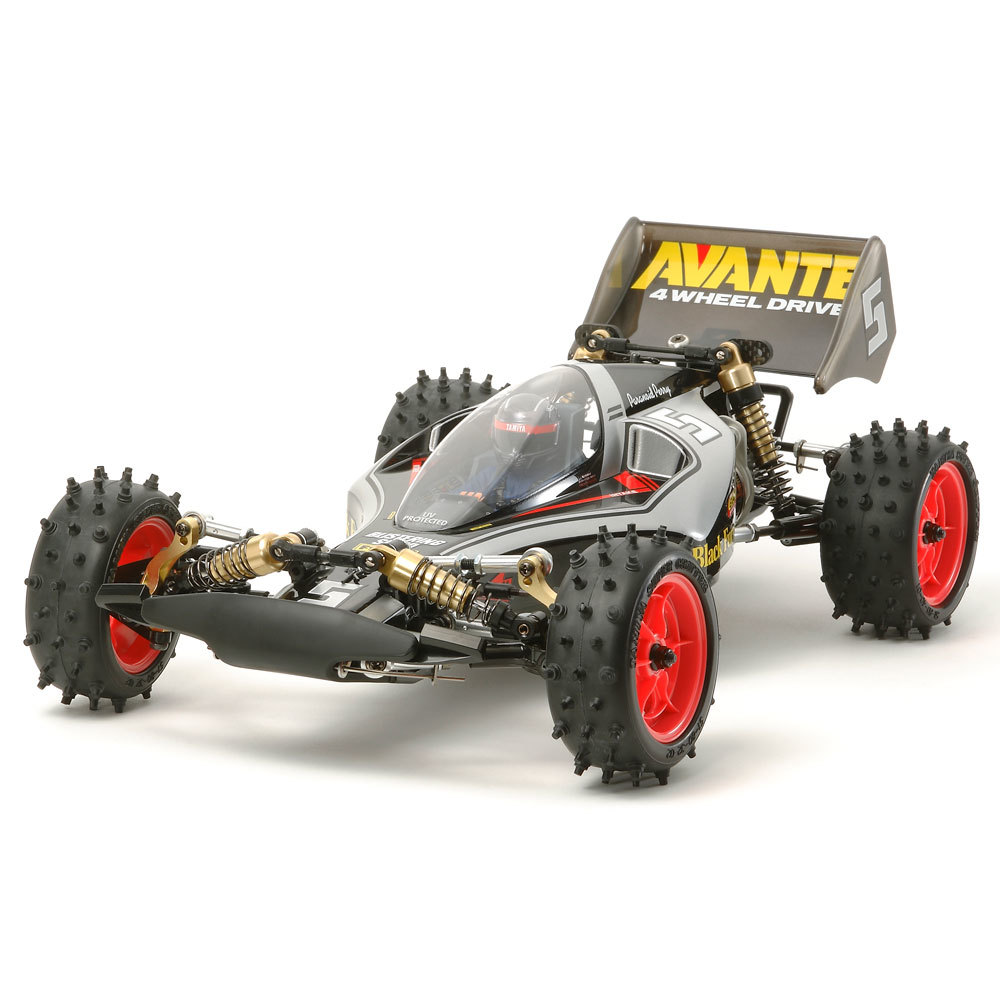

The Tamiya Avante Black Special is a limited-edition re-release of a true RC icon, originally released to commemorate the 35th anniversary of Tamiya R/C car products. It sports a colour scheme inspired by its Mini 4WD cousin the Avante Black Special. The machine features a unique shaft-driven 4WD system taken from Tamiya's first 4WD R/C buggy, the Hotshot, with a highly sophisticated design including an FRP double-deck chassis layout, longitudinal motor and battery positions, and a formula-type body with chassis fairing. The modern specification features updates such as universal drive-shafts and machined aluminium uprights for increased durability and performance over the original.

Note: The 47390 kit is a reissue of the 84270 Avante 2011 kit, which is itself a reissue of the original 58072 Avante. It was reissued again in spring 2022.

Carbon Fibre Chassis

Carbon Fibre Chassis

The car's chassis is engineered for both performance and durability, featuring a 2mm thick carbon double-deck that provides exceptional strength and rigidity.

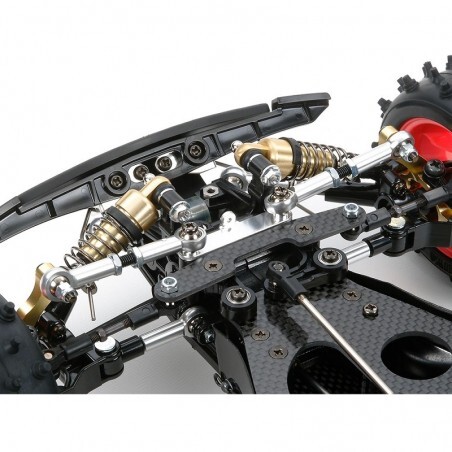

Comp Spec Steering

Comp Spec Steering

Experience a smooth and accurate steering feel with the included racing steering set. The 2mm thick carbon plate construction ensures rigidity and responsiveness, enhancing overall handling.

Limited Edition Motor

Limited Edition Motor

The car is powered by a high-performance 540 type (25T) motor, featuring a unique sticker for added style. The option to choose between a torque splitter or rigid centre spur gear allows you to fine-tune the car's handling.

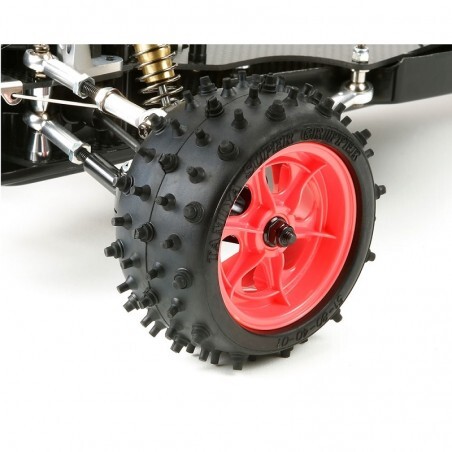

Colourful Wheels

Colourful Wheels

The car's wheels and tyres are designed for both performance and visual impact. The fluorescent pink wheels add a bold touch, while the hybrid studded tyres provide exceptional grip and handling.

Features

  • Pre-painted black
  • Classic 4WD race buggy
  • Universal drive-shafts and machined aluminium uprights
  • FRP double-deck chassis layout
  • Formula-type body with chassis fairing
  • Longitudinal motor and battery positions
  • Compact gearbox with 3 planetary gears
  • Centre differential increases stability
  • Fully adjustable suspension
  • Cam-lock wheel caps
  • 2mm thick carbon double-deck chassis
  • Planetary gear differentials front and rear; ball differential in the centre
  • 3-piece steering tie-rod
  • 4-wheel double wishbone suspension
  • Front and rear oil dampers
  • Gear ratio: 8.33:1
  • Type 540 motor (25T)
  • Enjoyable kit build

Required Items

  • Steering servo
  • Remote controller
  • Electronic speed controller (ESC)
  • Battery
  • Charger
  • Polycarbonate-safe paint (e.g. Tamiya PS series)
  • Tools

Note

This body shell is completely unpainted and may or may not require body post holes to be drilled. Only use a polycarbonate-style paint such as the Tamiya PS series to finish this body — standard paints will not adhere and/or may cause damage to the body shell surface.

Specifications

Length

420mm (16.53")

Width

240mm (9.44")

Height

140mm (5.5")

Wheelbase

260mm (10.23")

Drivetrain

4WD

Chassis

2mm thick carbon double-deck

Differential — Front/Rear

Planetary; Centre: Ball diff

Steering

3-piece steering tie-rod

Suspension

4-wheel double wishbone

Dampers

Front and rear oil dampers

Gear ratio

8.33:1

Motor

Type 540 (25T)

ESC

Not included

RC Car

Scale

1/10

Max LiPo Power

2S (7.4v)

Completion

Kit

Skill Level

Intermediate

Power Source

Electric Brushed

Chassis Type

Buggy

On/Off Road

Off Road

Drivetrain

4WD

RC Kit

Suited Motor/ESC Type

Electric

Factory Specs

Max LiPo Power

2S (7.4v)

Battery Connector

Tamiya

Front Shock Oil

600cST

Rear Shock Oil

600cST

Pinion Gear

22T

Wheel Hex Size

12mm


Please Note:

This kit comes without a Servo, Battery, Charger, or Transmitter and will come with an unpainted body that may require cutting and drilling.

SKU 47390
Barcode # 4950344066520
Brand TAMIYA
SCALE 1:10
