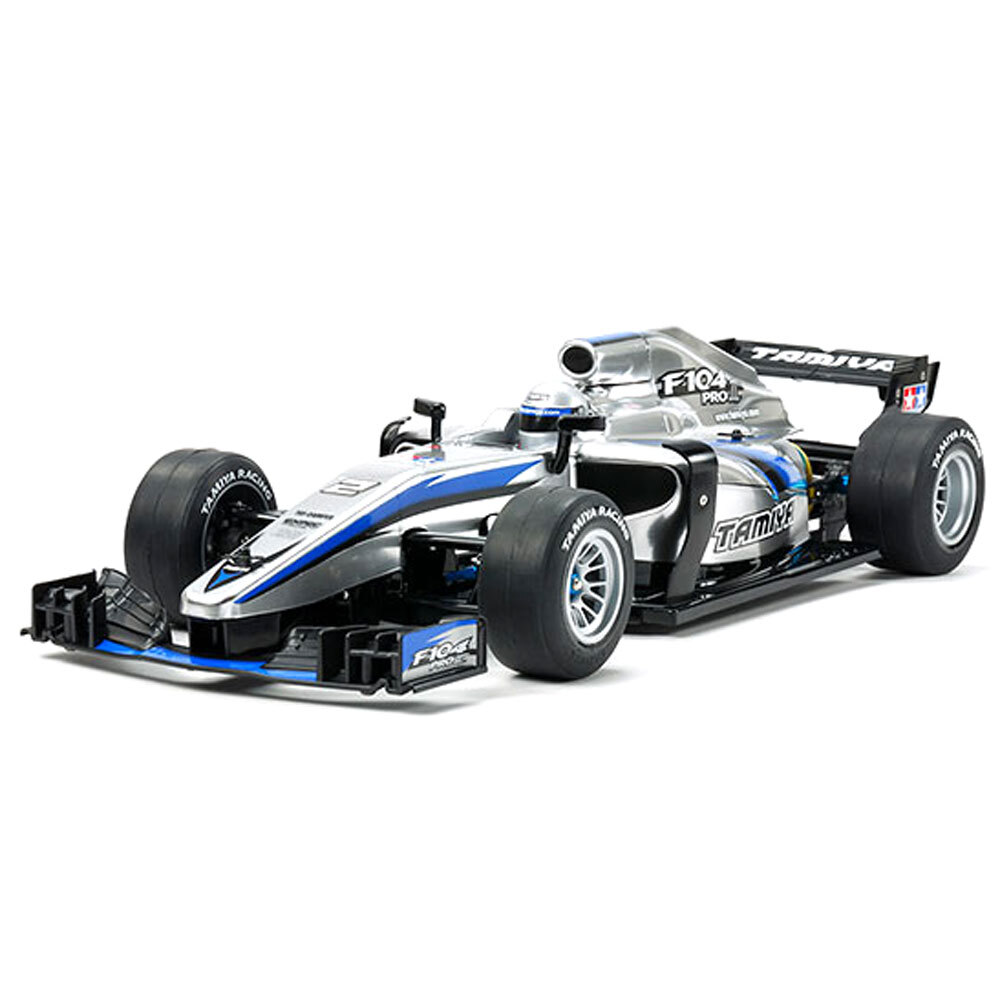

Modern Day Racer
This R/C formula chassis assembly kit comes with a realistic polycarbonate body drawing on 2017 trends with a sharp, slanting nose and bulging side pontoons. Additional parts are included to create alternative tapered lower sections for side pontoons. The complex front wing and its low rear counterpart are reproduced with separate parts, as are bargeboards and induction pod.

Streamlined & Upgraded Chassis
The kit fits the lightweight and streamlined F104 chassis with various upgraded parts. At the front, the independent kingpin coil spring suspension’s camber can be altered by switching upper mount attachment direction, while the rear rigid setup features a T-bar for smooth pitch damping, in combination with friction plates and a TRF damper. Rear wheels can be changed without the need to dismantle the aluminum ball differential. Semi-pneumatic synthetic rubber tires give great realism. Comes with full ball bearings.

Specifications
Length: 440mm, Width: 180mm, Height: 88mm
Wheelbase: 270mm
Tread: 150mm (Front), 145mm (Rear)
Tire Width/Diameter: 30/64 (Front), 35/64 (Rear)
FRP Double Deck Frame
Transverse Motor Rear Direct Drive 2WD
Ball Differential
Symmetrical Steering Tie-Rod
Suspension: Kingpin Coil Spring (Front), T-Bar Rigid (Rear)
Gear Ratio 4.16:1 (When used with 25T Pinion and 104T Spur Gears
Requires Type 540 Motor and Electronic Speed Controller (sold separately)

Separately Required Items
Motor
2-Channel R/C Unit with ESC
Battery Pack & Charger
R6/AA/UM3 batteries for transmitter

SKU T58652
Barcode # 4950344586523
Brand TAMIYA
Shipping Weight 4.0000kg
SCALE 1:10
