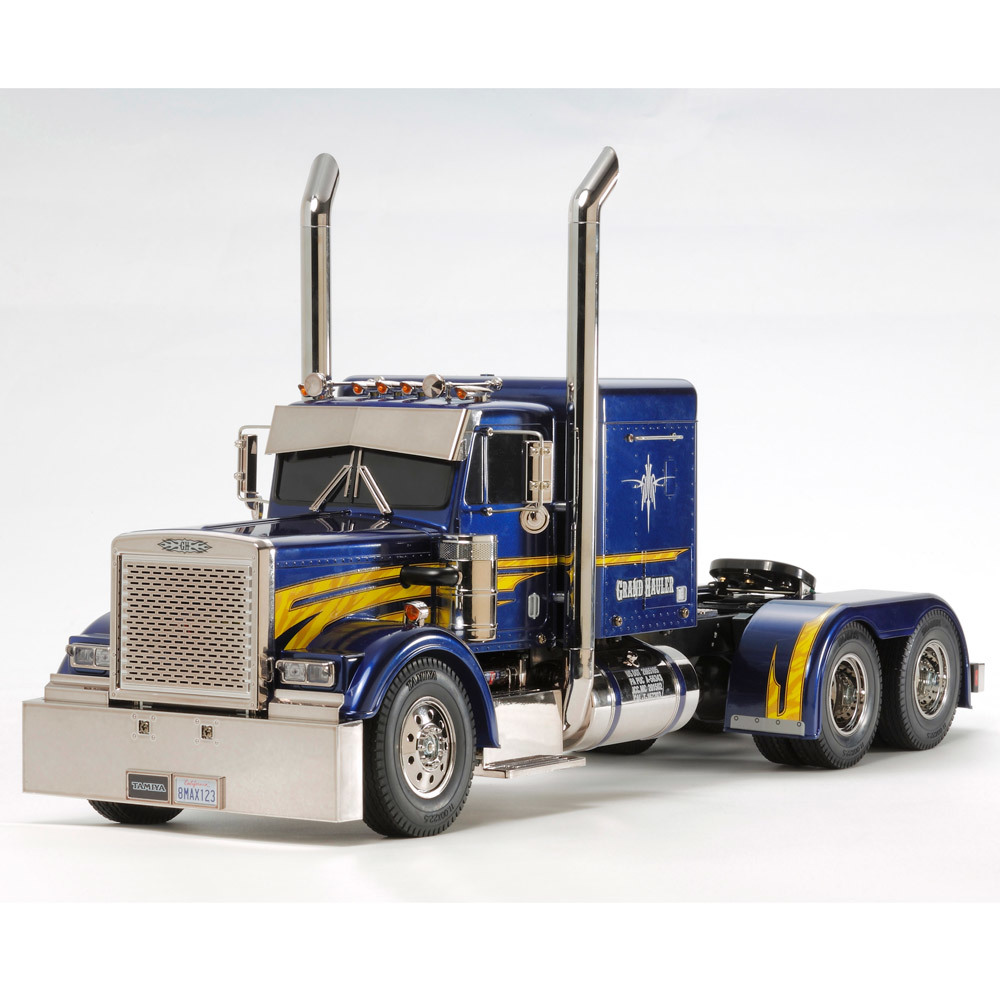

Custom Big Rig
Take control of your very own big rig - this R/C model assembly kit recreates a massive boxy, customized truck like those seen in North America. The model's ladder frame chassis features aluminum side channels with resin cross members and is equipped with a highly realistic suspension utilizing metal leaf springs and friction dampers. A front-mounted motor and 3-speed transmission power the two rear wheel axles, which are fitted with built-in differentials to enable smooth cornering. A 4-channel R/C system and multi-function unit allow you to drive the vehicle and experience realistic lights, sounds and vibrations.

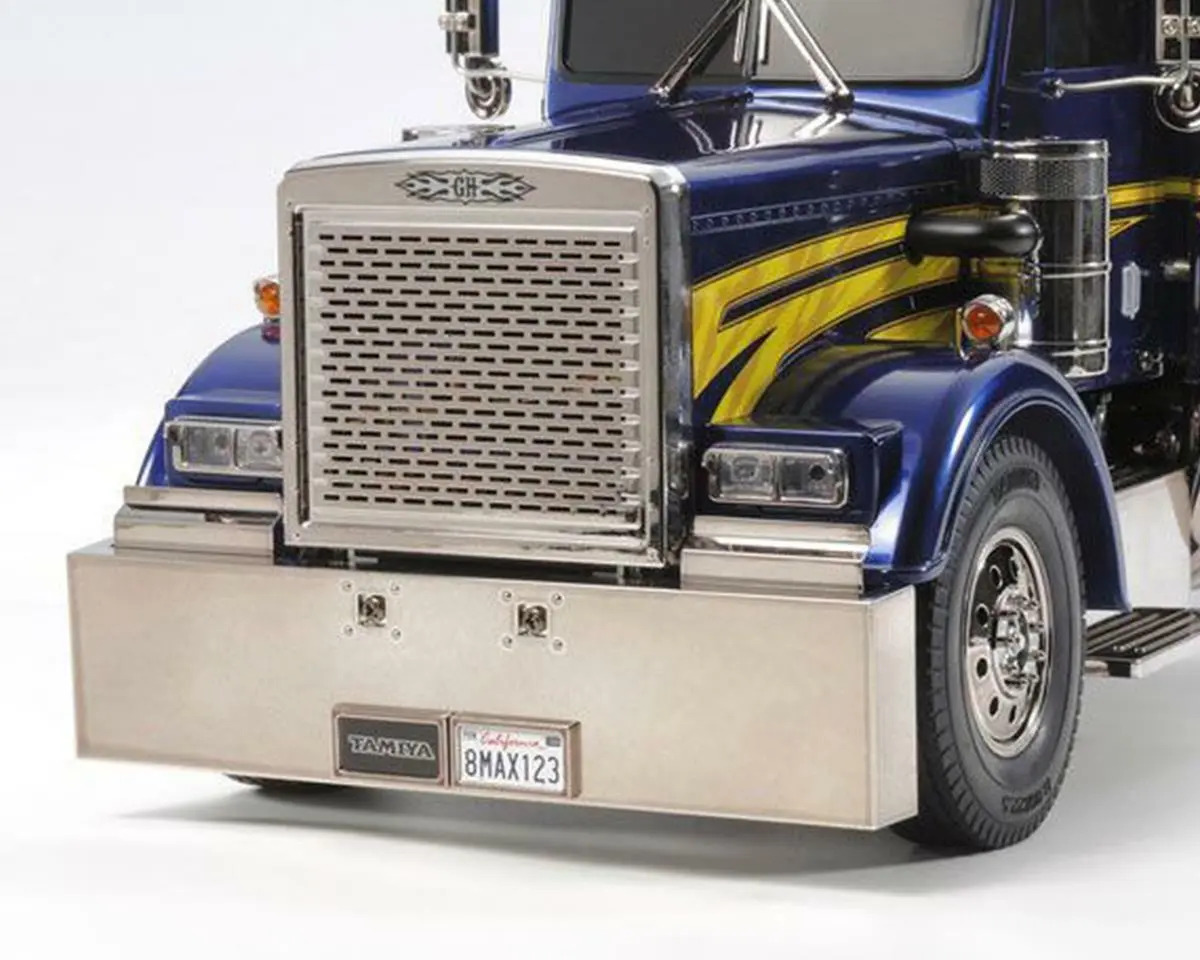

Enjoy that customized mood, enhanced by metal plated parts such as the front bumper and radiator grille.

The roof also features plated horn and light bezel parts. LEDs can be inserted to light up your model!

Plated side mirror parts also include kerb mirrors. Moving metal stays allow adjustment of mirror position.

Further detail is added to the oversized air cleaners, with photo-etched parts depicting air intakes.

The cab oozes a custom mood, enhanced by parts such as the bulky metal plated sun visor.

Lowered step provides storage location for MFC unit. Fuel tanks are also mounted low under the body.

Model utilizes metal pipes to depict mufflers, while their optional covers are gleaming metal-plated resin.

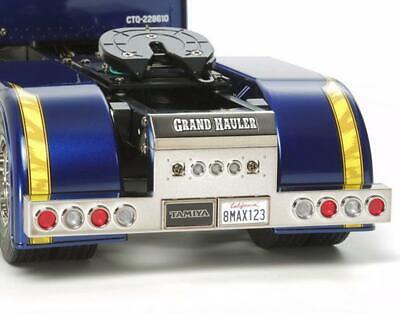

Low-down rear bumper offers multiple lamp positions, compatible with LEDs. Fender parts are included.

Length 692mm, Width 192mm, Height 330mm, Weight Approx. 3.9kg (*with all equipment attached)
Wheelbase: 433mm+103mm
Tread: 156mm (Front), 138mm (Rear, Double Tire)
Chassis: Aluminum & Polycarbonate Resin Ladder Frame
Suspension: Front/Rear Leaf Springs
Caster Angle (Front/Rear): 0°/0°
Camber Angle (Front/Rear): 0°/0°
Toe Angle (Front/Rear): 0°/0°
Dampers: Front/Rear Aluminum Friction Dampers
Drivetrain: Rear 2-Axle Drive
Transmission: 3-Gear Transmission (gear shifting operated from transmitter)
Gear Ratio: (1st Gear) 32.49:1, (2nd Gear) 17.76:1, (3rd Gear) 10.66:1
Diff Gear: 3-Bevel Diff.
Motor: Type 540
Tire Width 22mm (Front/Rear)
Tire Diameter 83mm (Front/Rear)

The Grand Hauler resembles a classic customized American tractor truck. The included 540 motor drives a 3-speed transmission, which has no problem turning the dual rear axles. Leaf spring and shocks keep the axles suspended to the metal C-Channel ladder frame, which keeps the power to the pavement.

Features:

Scale: 1/14
Construction Type: Assembly kit
Terrain Use: On-Road
Drive-train: 4-axle semi
Drive type: 3-Speed
Drive line: Dog bone
Differential type: Live axle
Suspension: Leaf spring
Steering mechanism: Bell-crank
Shock damper: Friction damper
Shock damper material: Aluminum
Tire type: Rubber
Tire tread: Radial
Body material: ABS Plastic
Chassis material: Aluminum & plastic
Electronic Speed Control (ESC): Not Included
LED Light buckets: Yes
LED lights: No
Motor: 540-brushed type
Bearings: Metal Bearings
Adjustable camber: Fixed
Adjustable toe angles: Front only
Adjustable ground clearance: Fixed
Adjustable gear ratio: 3-speed transmission
Adjustable wheelbase: Fixed
Adjustable track width: Fixed
Adjustable shock angle: Fixed
The realistic, lengthened body features newly-designed parts depicting front and rear bumpers, front grille, air cleaners and muffler covers. Muffler covers are made from metal tubing.
Features a tough ladder frame construction with aluminum side channels and plastic cross members.
Realistic drivetrain setup sees the front mounted motor powering twin rear axles.
Metal leaf spring dampers with built-in coil springs provide durable suspension.
Newly-designed 1/14 scale driver figure included.
Coupler is included to enable connection with any currently available Tamiya 1/14 scale trailer

Specifications:

Length: 692mm
Width: 190mm
Height: 300mm
Weight: 3.9kg
Wheelbase: 433mm
Tread Front and Rear: 156mm

Inclusions:

Tamiya 1/14 King Hauler Custom EP Car Kit (1 Set)
Motor: 540 type (1 Pc)
3-Speed Transmission (1 Pc)
Tires (10 Pcs)
Wheels (10 Pcs)
Body (1 Pc)
Newly-designed 1/14 scale driver figure (1 Pc)

Requires:

ESC
4-channel radio gear
Servo
7.2 battery & charger
Battery Pack
TS plastic model paint
Glue
Tools

SKU 56344
Barcode # 4950344563449
Brand Tamiya
SCALE 1:14
