A Fighter, and a Winner!

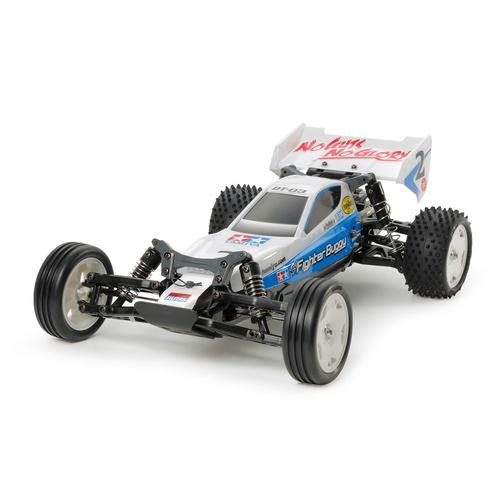

The 2WD buggy The Frog will be a model familiar to many who joined in the first R/C boom of the 1980s. Now, it serves as the inspiration for this new model, the Neo Fighter Buggy. At home both on- and off-road, this 2WD buggy features a lightweight yet tough monocoque frame that protects vital equipment such as the servo and battery from damage; its long form also offers great stability. Coupled with friction dampers and 4-wheel double wishbone suspension, it means the Neo Fighter Buggy performs well even on difficult off-road surfaces. Such a combination of hassle-free assembly and high-performance, light-on-its-feet handling is sure to recommend this model not only to fans of the past, but also to the next generation of R/C racers!

DT-03 Chassis: Great Fun, Minimum Fuss.
The stylish slimline form of this chassis stems from its lightweight yet durable monocoque frame, which features a longitudinally-positioned battery and the R/C equipment along the centerline for excellent balance. The combination of a long 287mm wheelbase and 4-wheel double wishbone suspension married to friction dampers with long arms, allows the model to handle with stability on poor surfaces. Ribbed front and square spike rear tires provide ample grip, and the rear-positioned gearbox is sealed to protect from dust and dirt, with the built-in differential gear offering smooth cornering.

Front suspension arms are attached at a 25-degree angle to improve off-road ability.

Rear gearbox is sealed to protect from dust and dirt, and the built-in differential provides smooth cornering.

Dust cover protects the model's R/C equipment from sand and dust, helping prevent running trouble.

The sticker sheet includes logos used on the original Frog model, plus Neo Fighter Buggy logos.

Paint the tough polycarbonate body and apply markings as you like to create your own cool racer!

Length: 400mm, Width: 248mm, Height: 132mm
Wheelbase: 287mm, Tread (Front/ Rear): 221mm/208mm, Tire Width/Diameter: 27/80mm (Front), 41/86mm (Rear)
Monocoque Frame
Rear Wheel 2WD
3-Bevel Differentials
2-Piece Steering Tie-Rod
Front & Rear Double Wishbone Suspension
Gear Ratio 9.28:1
Type 540 Motor

Specifications:

  • Adjustable Gear Ratio: Yes
  • Bearings: Plastic bushing
  • Body Material: Polycarbonate
  • Body Stickers: Included
  • Chassis Material: Plastic
  • Chassis Type: DT-03
  • Construction Type: Assembly Kit
  • Differential Type: Gear
  • Drive Type: 2WD
  • Electronic Speed Control (esc): Included
  • Led Light Buckets: no
  • Motor: 540-brushed type
  • Required To Complete: 2-channel radio, steering servo, 7.2volt battery & battery charger, and Tamiya PS paint.
  • Scale: 1/10
  • Shock Damper: Friction damper
  • Special Feature 1: Monocoque DT-03 chassis
  • Special Feature 2: Utilizes a longitudinally-placed rear motor, rear-wheel drive set-up.
  • Special Feature 3: Long wheelbase design enables stable performance.
  • Special Feature 4: The angle of the skid-shaped underside has been increased to raise the car?s off-road potential.
  • Special Feature 5: Features a newly-designed body molded in tough polycarbonate material.
  • Special Feature 6: Includes a torque-tuned motor and CVA shock units.
  • Special Feature 7: Includes Tamiya TBLE-02S ESC (capable of running brushed and brushless motors)
  • Suspension: Fully Independent Double Wishbone
  • Terrain Use: Off-Road
SKU 58587
Barcode # 4950344585878
Brand TAMIYA
SCALE 1:10
