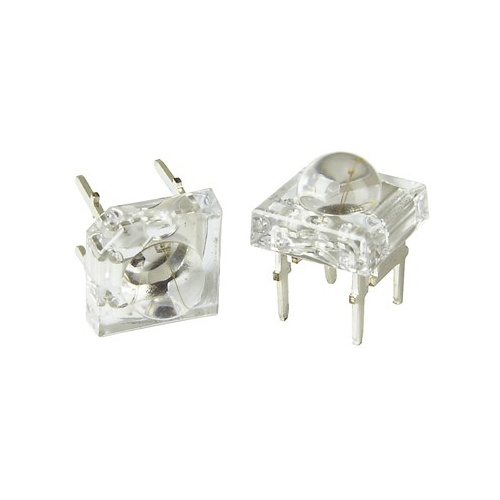

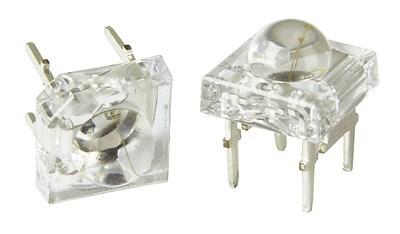

Tricolour RGB 5mm LED Superflux 150-900mCd Square
More info
Specifications
Size (mm) 5 Superflux 5 Superflux 5 Superflux
Colour Red Green Blue
Lens Waterclear Waterclear Waterclear
Viewing Angle (Degrees) 60 60 60
Wavelength (nm) 643 528 468
IF Typical (mA) 20 20 20
VF Typical (V) 1.8 3.2 3.2
IV Typical (mcd) 200 900 150
IF Max Continuous (mA) 20 20 20
Preferred Value Series Resistor
5VDC 160 91 91
9VDC 360 300 300
12VDC 510 470 470
Common Anode
Size (mm) 5 Superflux 5 Superflux 5 Superflux
Colour Red Green Blue
Lens Waterclear Waterclear Waterclear
Viewing Angle (Degrees) 60 60 60
Wavelength (nm) 643 528 468
IF Typical (mA) 20 20 20
VF Typical (V) 1.8 3.2 3.2
IV Typical (mcd) 200 900 150
IF Max Continuous (mA) 20 20 20
Preferred Value Series Resistor
5VDC 160 91 91
9VDC 360 300 300
12VDC 510 470 470
Common Anode
(AM-ZD0010)
| SKU | AM-ZD0010 |
| Model # | ZD0010 |
| Barcode # | 9319236934470 |
