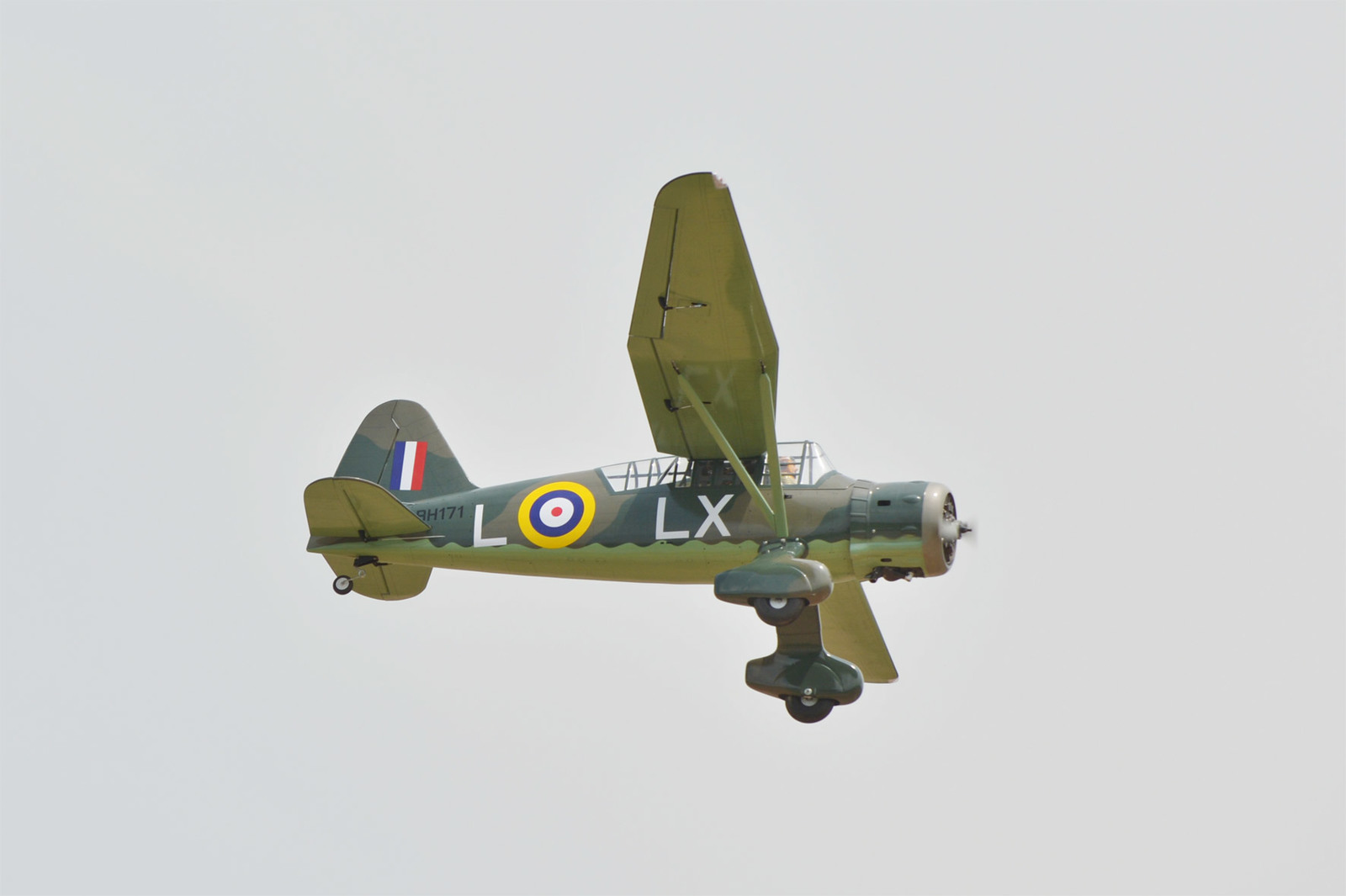

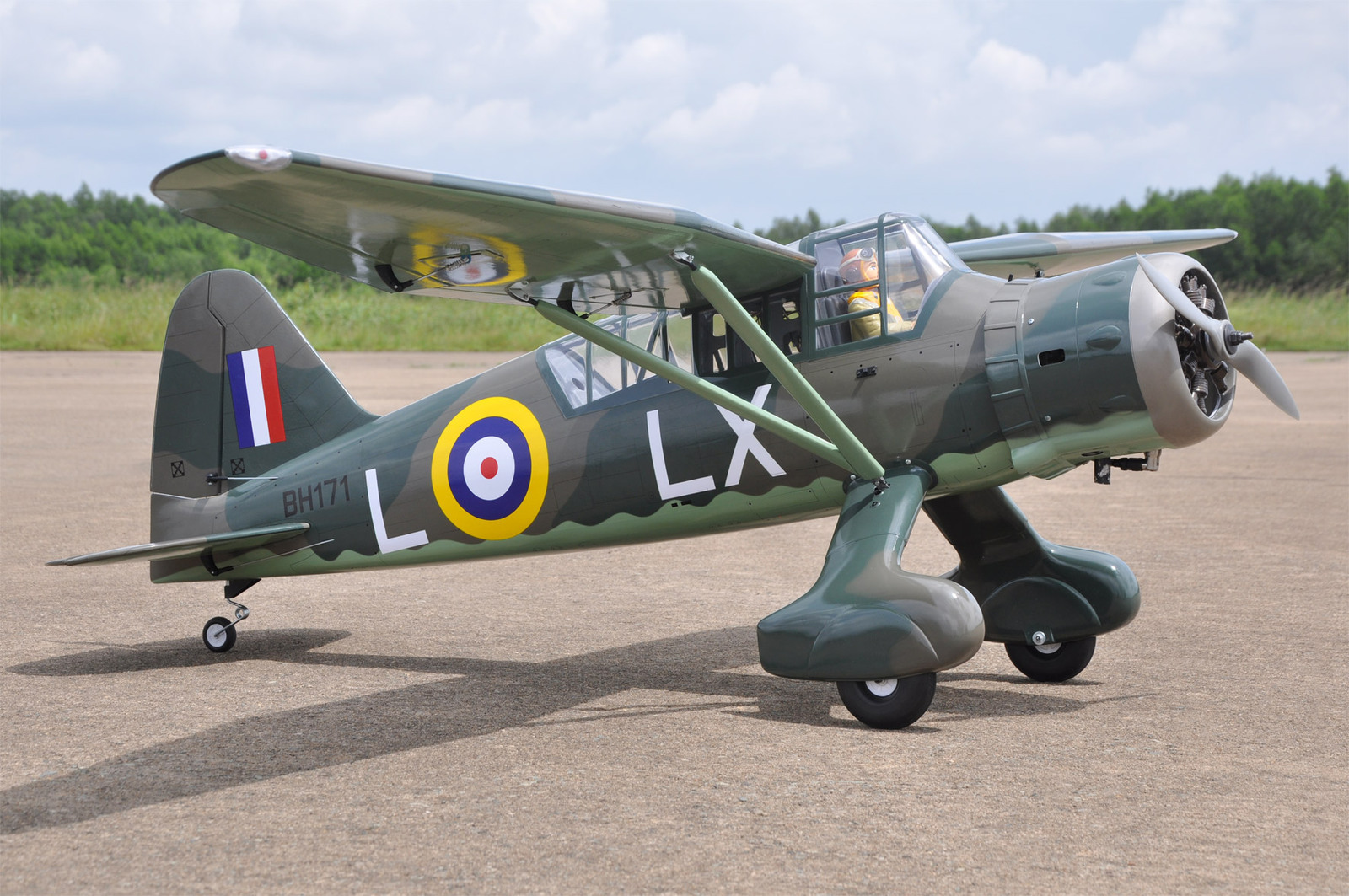

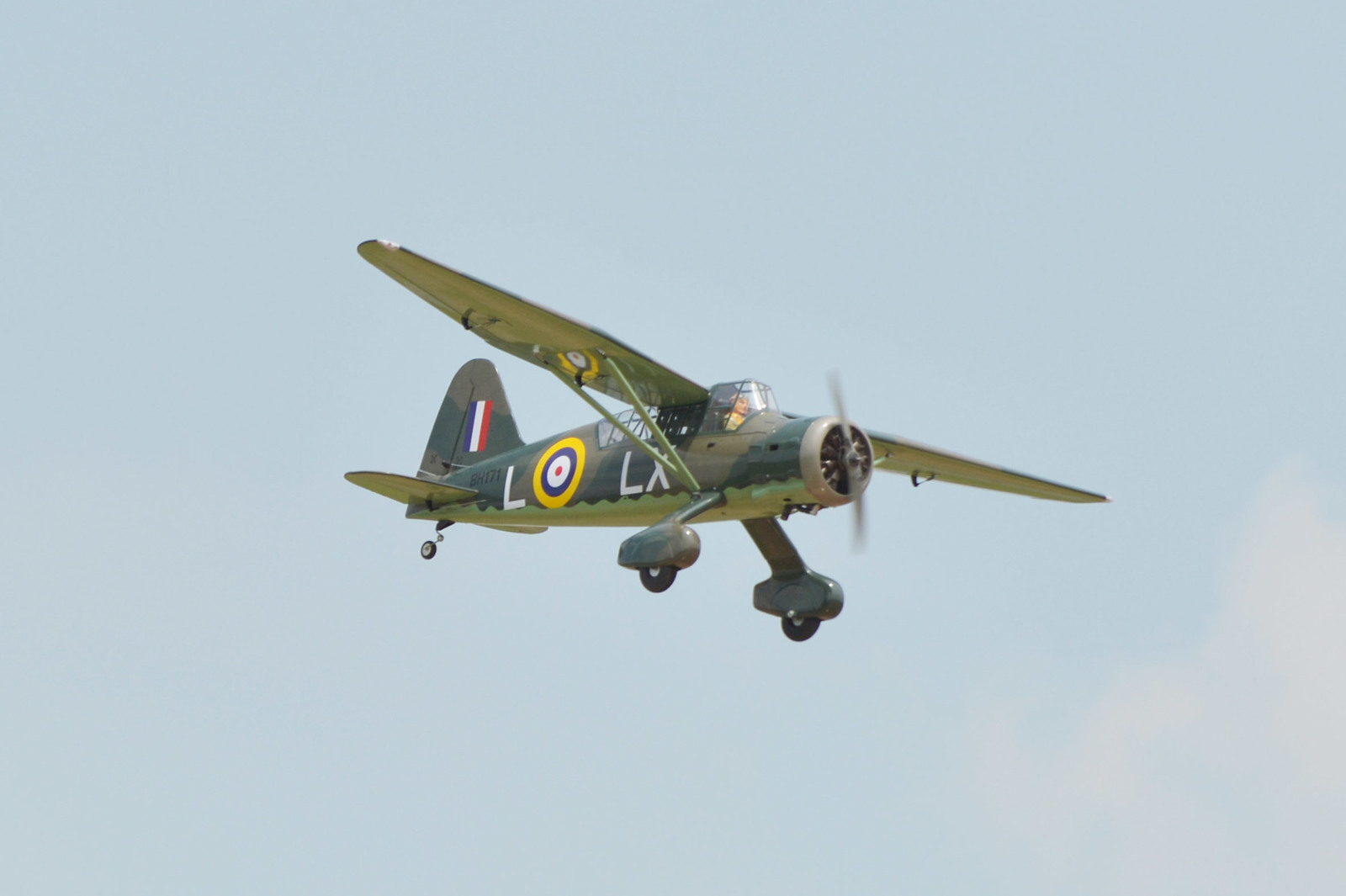

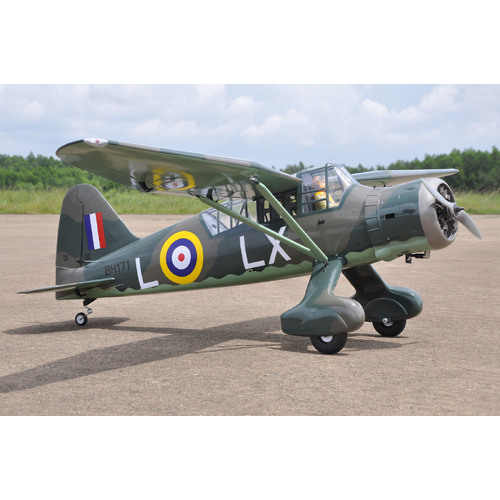

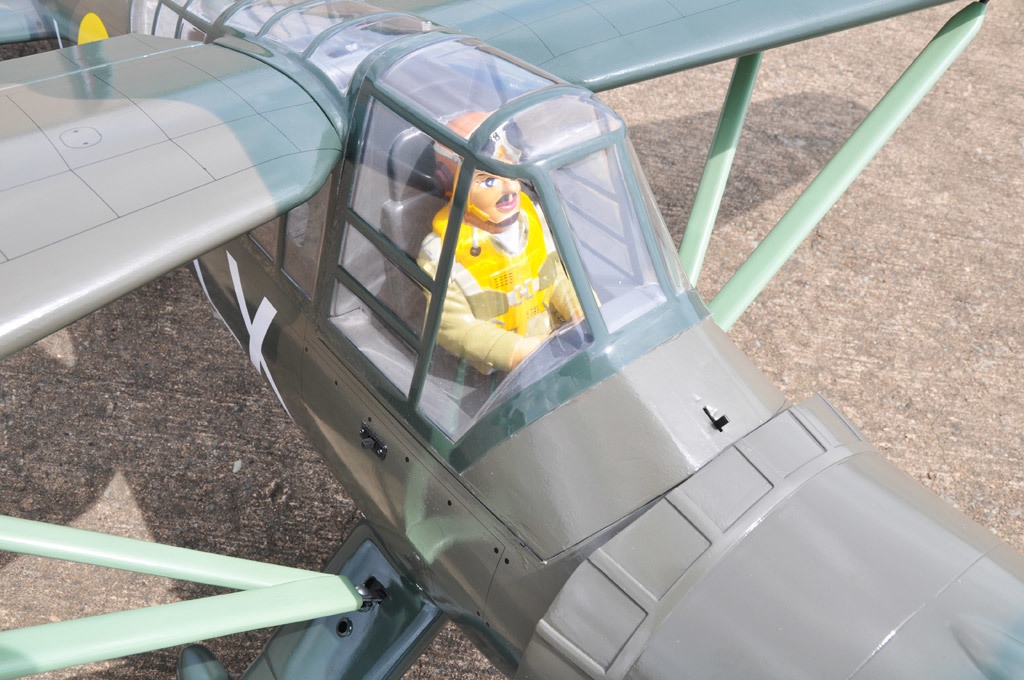

Westland Lysander ARF 33cc gas BH-170

BLACK HORSE MODELS Westland Lysander ARF 33cc gas BH-170

Westland Lysander
Scale 1:6
Item code: BH170.
Glow and EP

SPECIFICATION:
-  Wingspan: 2,540mm (100in).
-  Length: 1,600mm (63in).
-  Weight: 6.8 – 7.1kg (14.96 – 15.62 lbs).
-  Wing area: 68.6 dm².
-  Wing loading: 99.13g/dm².
-  Wing type: Naca Airfoil.
-  Servo mount: 42mm x 21mm.
-  Gear type: Aluminium Hi-grade for main gear and spring wire for tail gear (included).

Parts listing required (not included):
-  Radio: 06 channels.
-  Servo: 08 servos.
-  Engine: 30 – 40 cc gas.
-  Motor: Brushless outrunner 2500 – 3200W, 250KV.
-  Propeller: Suit with your engine.

Recommended Motor and Battery set up(not included):
-  Motor:  RIMFIRE.1.60.
-  Lipo cell: 12 cells 4,000-5,500mAh.
-  Receiver battery: 6V/ 1200mAh.
-  ESC: 120A.

ALL BALSA – PLY WOOD CONSTRUCTION.
COVERED IN A HEAT-SHRINK FILM WITH PRINTED.
