XFly C-17 Globemaster Quad 40mm EDF PNP

Description

XFly Model is proud to announce its first transport aircraft C-17 in the EDF range. With a 1200mm wingspan, the C-17 features a scale outline and details including four efficient engines and landing gears with dual wheels. The factory pre-installed power configuration, including four 40mm fans with 1413-KV5000 brushless motors and four 20A brushless ESCs, paired with a 4S LiPo battery, delivers an abundance of thrust for vertical climbs, rolls, loops and other maneuvers. With sensible throttle management, the C-17 features a potential flight time of 3-8 minutes.

Both front and rear landing gears are fitted with dual wheels, which equips the plane with grip ability to maintain accuracy and stability while taxiing on the ground before takeoff or after landing. The battery compartment is located in the middle of the fuselage, which allows the plane to easily achieve a proper Center of Gravity. The model is conveniently sized for flying at large parks, sports fields, or traditional RC flying fields, so it can be stored and transported without disassembly. It can fit fully assembled in just about any vehicle.

Features

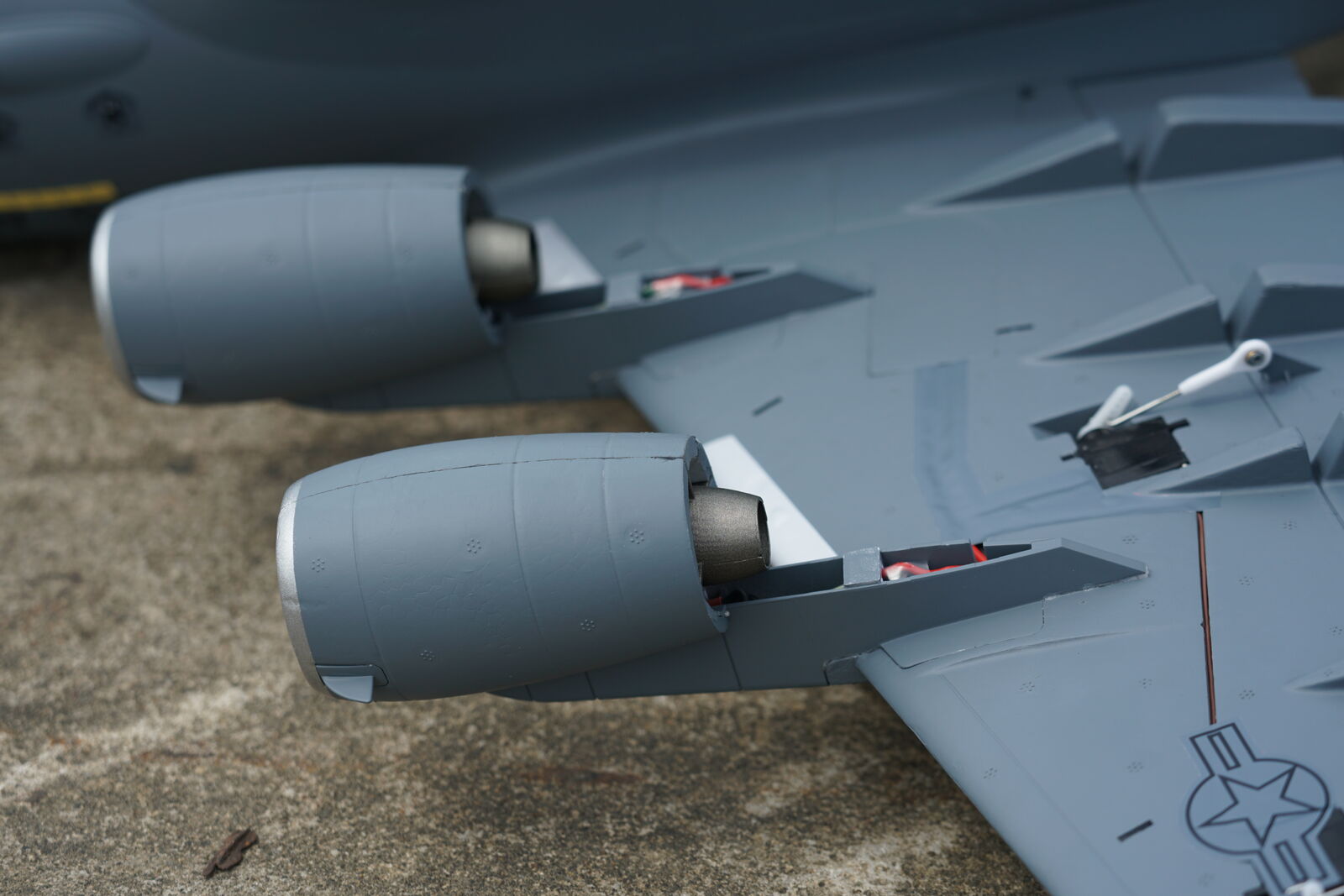

  • Four efficient 40mm EDF power configuration delivering an abundance of thrust for vertical climbs, rolls, loops and other maneuvers

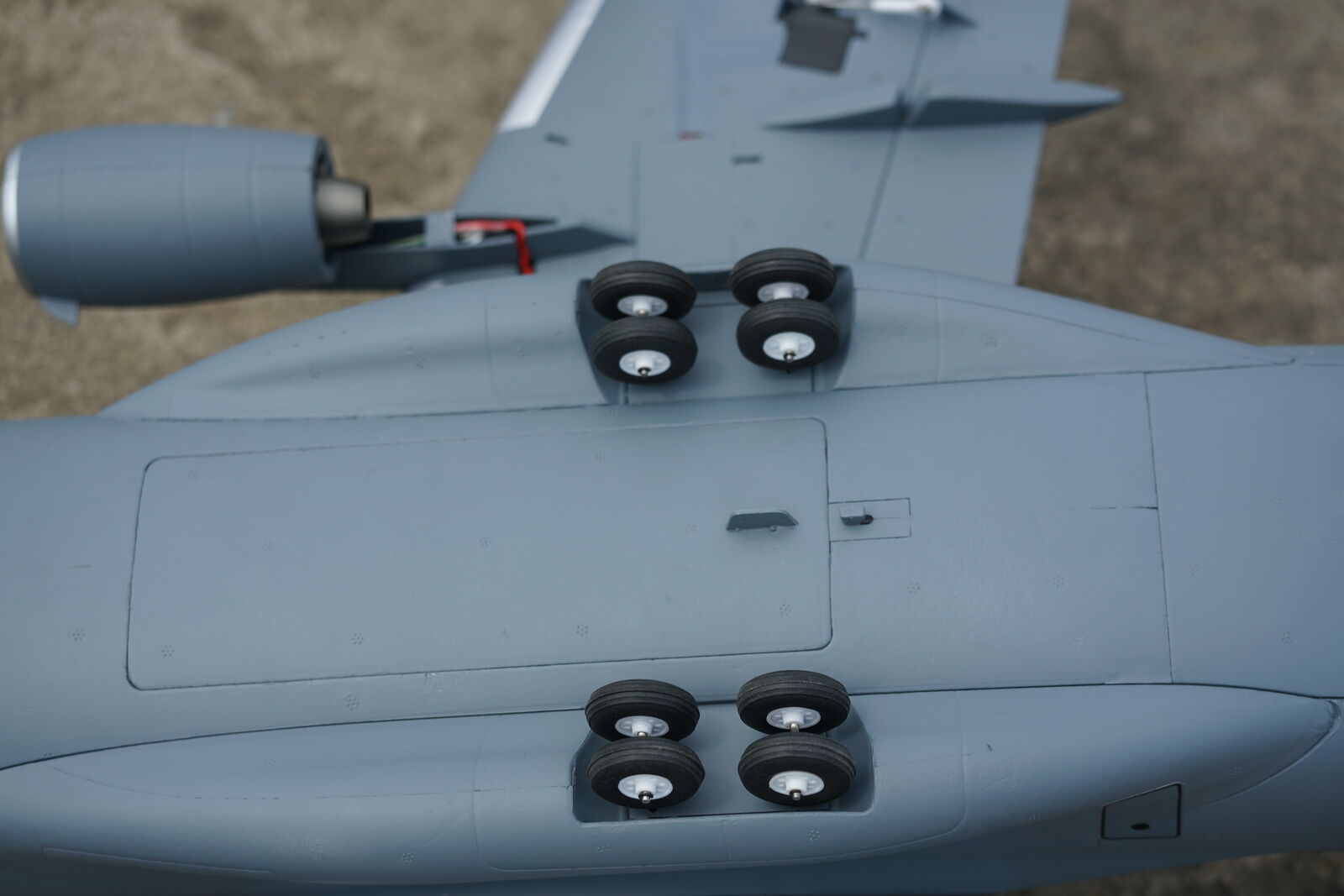

  • Landing gears with dual wheels designed for grip ability, accuracy and stability

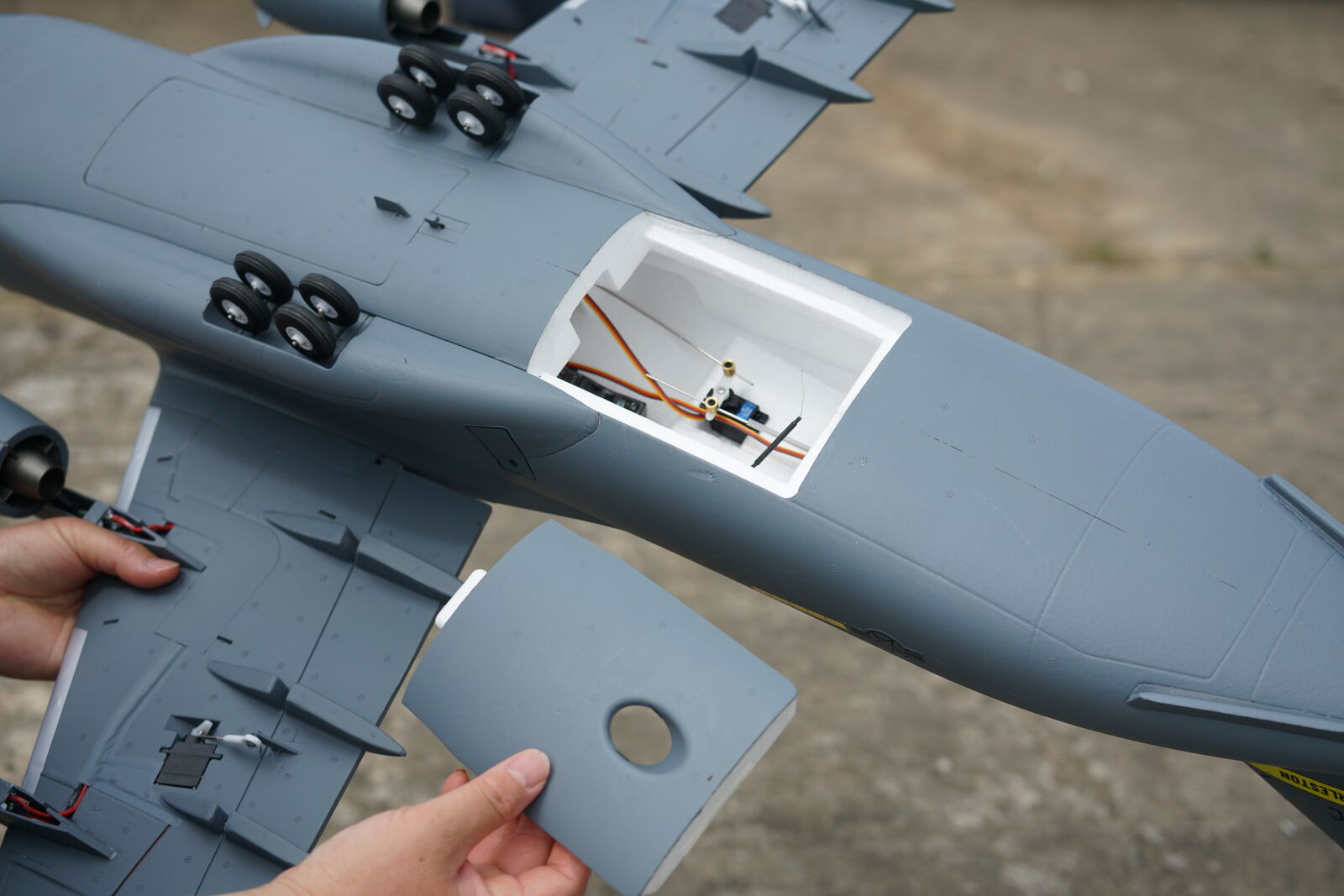

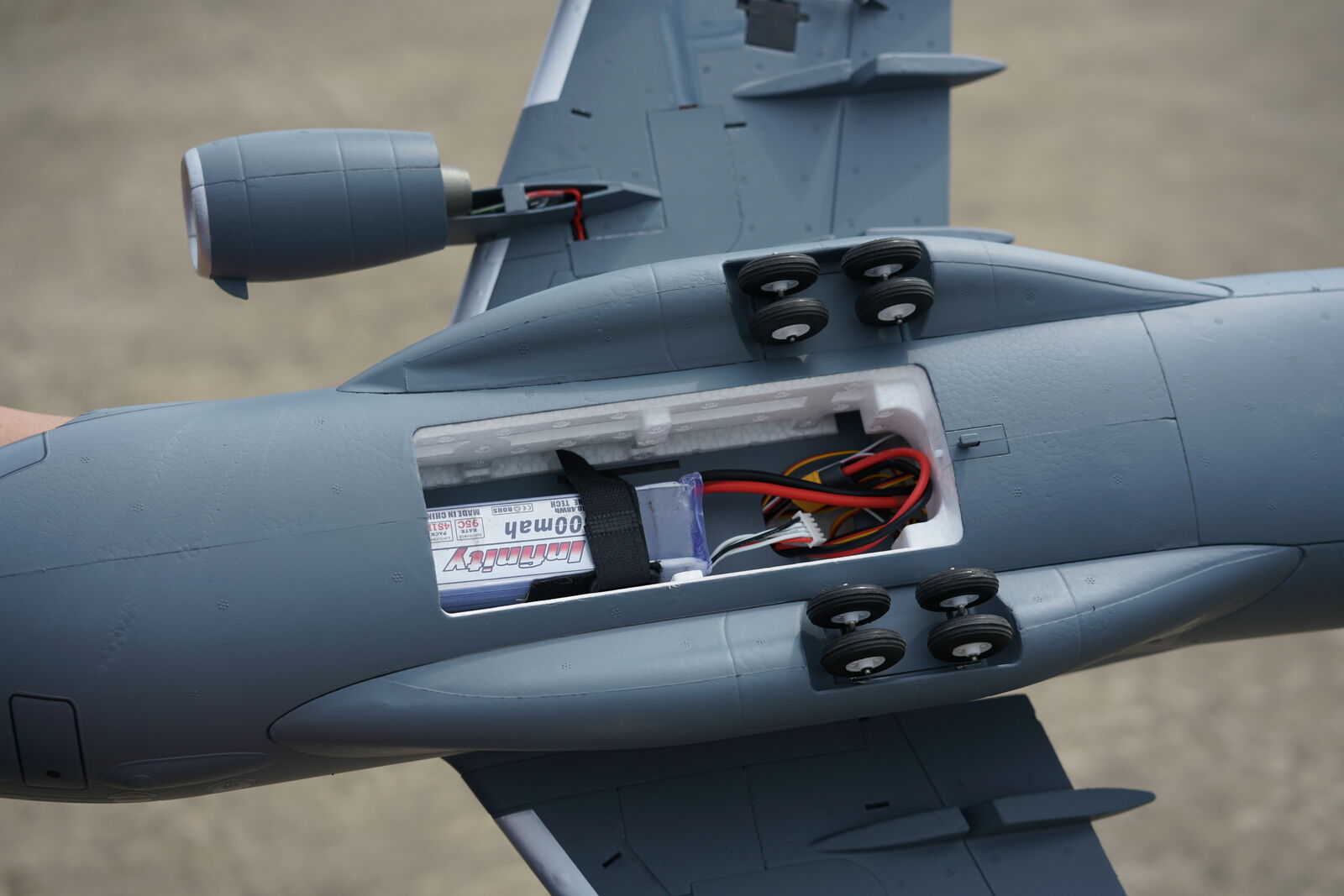

  • Battery compartment reasonably designed to easily achieve a proper C.G.
  • Extended flight time of 3-8 mins when using recommended 4S 2600-4000mAh LiPo battery
  • Quick and easy assembly
  • Full painted with decal pre-applied

Technical Specifications

  • Wingspan: 1200mm/47in
  • Length: 1150mm/45in
  • Wing loading: 97g/dm²
  • Wing area: 16dm²
  • Weight in flying: 1560g
  • Motor: 1413-KV5000 *4
  • Controller: 20A *4
  • Servos: 9g servo*7
  • CG: 145mm from the leading edge
  • Recommended battery: 4S 2600-4000mAh
  • Landing gear: Landing gears with dual wheels
  • Ailerons: Yes
  • Elevator: Yes
  • Throttle: Yes
  • Rudder/Steering: Yes
  • Flaps: Yes
  • Retractable landing gear: No
  • Radio: 5 channels
  • Recommended environment: Outdoor
  • Flight time: approximately 3-8 minutes
  • Assembly time: about 15 minutes
  • Age: 14 years and up
  • Level: Intermediate

Content

  • XFly C-17 Globemaster Quad 40mm EDF PNP
  • Motor: 1413-KV5000 *4
  • ECS: 20A *4
  • Servos: 9g servo*7

Required

  • 5-Channel radio transmitter
  • 5-Channel receiver
  • 4S 2600-4000mAh
  • 4S Battery charger

Wingspan 1200mm/47in
Overall length 1150mm/45in
Flying weight 1560g
Motor size 1413-KV5000 *4
ESC 20A *4
Servo 9g servo*7
Channels 5CH- aileron, elevator, throttle, rudder/steering, flap
CG 145mm from the leading edge
Wing load 97g/dm²
Wing area 16dm²
Recommended battery 4S 2600-4000mAh
Approx flying duration 3-8 mins
Assembly time 15 mins
Skill level Intermediate
Age level 14 years +
Flap YES
Retract NO
EDF Size 40MM EDF 12-Blade
SKU XF124P
Brand XFly
