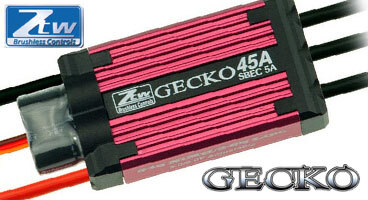

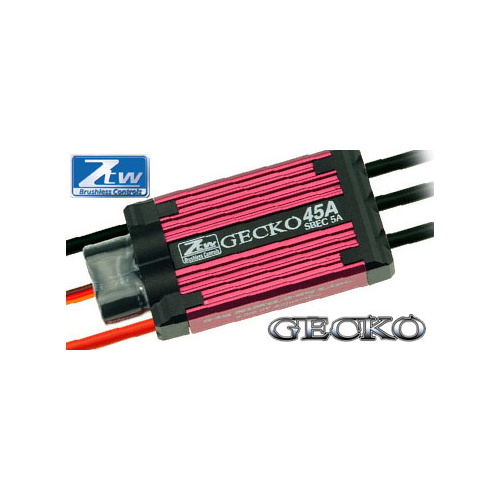

If you want the best, the very best ESC for your demanding applications then look no further than the ZTW 'Gecko' series. Supeb build quality with finned andodised aluminium body with lightweight end caps, and legendery ZTW bullet proof reliability makes the 'Gecko' series the ESC of choice for those that want the very best.

Additional features include safe power arming along with advanced programmable, data logging system, low voltage cutoff, braking, timing, throttle input range, and more, making this series truly a pro series speed control.

The Switch-Mode BEC has been specifically designed for extreme aerobatics and therefore has the capability to support the higher current applications to eliminate the possibility of unwanted shutdowns, and is also capable of supporting continuous simultaneous multiple servo operations typically found in CCPM equipped hardcore 3D E-helicopters and complicated fixed wing models.


Features

bullet Brake Setting Soft medium or hard
bullet Battery Type setting (LiPo, LiFe or NiCd/NiMh)
bullet Low Voltage Protection Cut-off Setting, either LOW (2.8v/50%, MEDIUM (3.0v/60%) or HIGH (3.2v/65%) or OFF
bullet Factory Default Setup Restore
bullet 3 x Timing Settings (in degrees) Auto, 2, 8, 15, 2, 30
bullet Start up strength, 10%, 15%, 20%, 25%, 30%, 35%, 40%, 45%, 50%
bullet Governor Mode x 5 (for helicopter applications)
bullet Motor Rotation (clockwise\counterclockwise)
bullet Low Voltage Cut-off Type (power reduction or immediate shutdown)
bullet Extremely low internal resistance
bullet Super smooth accurate throttle linearity
bullet Safety Thermal Overload Protection
bullet Auto throttle shutdown in case of signal loss
bullet Data logging system such as temperature, voltage, current, RPM,
bullet SBEC Voltage Output 5.0, 6.0 adjustable
bullet High SBEC Current Output, continuous 5A, designed to meet your high current applications
bullet Power arm protection, over-heat protection, low-voltage protection and lost-signal protection
bullet Secondary sub-menu setting by LCD program card or PC interface
bullet Firmware updating by PC interface
bullet Unique metal shape designing gives your new fashion visual impact.
bullet Super smooth and accurate throttle linearity
bullet Support and match with most of the motors, including high RPM motors
bullet Programmable motor timing
bullet Utilizes new smaller MOSFET technology to minimize weight
bullet Finned heat sink
bullet Programmable throttle input range
bullet Anti-spark circuit eliminates (HV OPTO version only?

ESC battery & motor wires are supplied bare ended for you to fit your own connectors.

SKU AZTW-GECKO-45
Barcode # 4045201
Brand ZTW
Shipping Weight 3.0000kg
