1:10 2.4G High-Performance BANG Short Course Truck UDI-UD1002

High Bright LED Lights
·Anti-collision bar double light bar
·All white Lights in the whole car

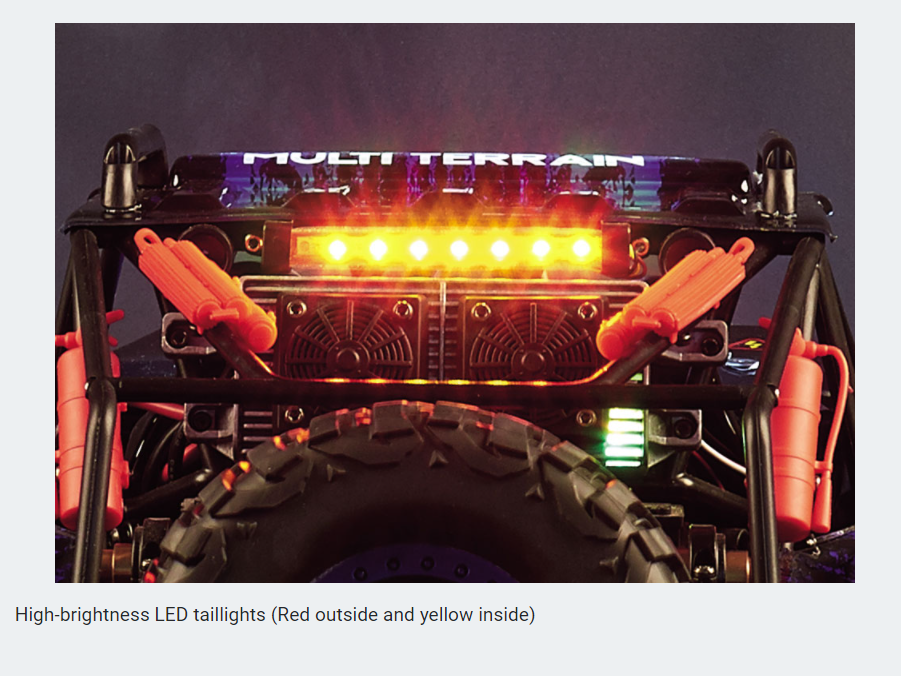

·Tail light(Red outside and Yellow inside)
·High-valtage 8 channel power amplifier for intense, brilliant LED lighting
·Regulated output for stable lighting performance (no flickering or dimming as the battery
voltage changes)

Waterproof Electronic Speed Control
·3s Lipo compatible
·Integrated cooling fan
·Real-time telemetry
·Aluminum alloy shell heat sink
·Powered accessory ports

2600KV sensorless brushless waterproof motor
·3-pole 2600KV brushless motor
·4mm output shaft
·Finned can for better heat dissipation

Up to 35+mph with 2s Lipo Batteries

Innovative Battery Compartment
·Closed dual battery compartment design
·Accommodates dual 2S Lipo or 3S Lipo batteries
·The battery cover adopts a flexible elastic buckle structure, which is convenient for disassembly and installation
·Support dual battery parallel use

·PC material bodyshell
·Strong and functional tube frame mimics full-size off-road racers
·The wheels are also equipped with dummy “brake calipers”, 14mm metal brake discs with one-piece hex adapters
·Two fully-functional spare tires
·Dummy parts: fire extinguisher, shock reservoir, battery, oil bottle and metal drive shaft
·The interior is equipped with a simulated driver, driver’s seat

·Composite inverted tub design
·Makes maintenance easier
·Lowers center of gravity(CG)for improved handling
·Allows easy access to components
·Tough skid plates protect critical components
·Fully integrated tube frame, added rigidity for the whole car
·Reinforced bumpers to absorb impacts

·Provides scale looks and authentic off-road driving dynamics
·Tough independent double-wishbone front suspension with fixed rod ends
·Triangulated 4-link rear suspension with solid rear axle
·Tough composite trailing arms
·Steel upper links with 3 optional positions for suspension tuning
·Realistic and functional front and rear sway bars
·Detailed functional limit straps on rear axle
·4 metal hydraulic spring twist shock absorbers
·4 two-speed reverse metal nitrogen dampers

·15KG metal gear waterproof steering servo
·Dual bellcrank design with bearings and integrated servo saver
·Solid non-adjustable steering links for rugged durability

·Steel CV driveshafts(front)with 6mm stub axles
·Steel straight axle(rear)
·Oil-filled limited slip front differential
·Locked steel spool (rear)
·Heavy-duty splined front driveshaft
·Fixed-length steel rear driveshaft

·All-steel gear direct drive transmission
·With central differential lock
·Removes as a single piece for easy maintenance
·Fixed-pin gear mesh system

Wheels and Tires
·Off-road tires
·120mm tires

Sealed Ball Bearing

Hardware with rust-resistant native oxid coating

Model UD1002: UDIRC UDIPOWER BANG 4WD Short Course Truck

What’s In The Box:
BANG Short Course Truck with ESC and 2600KV motor
User Manual

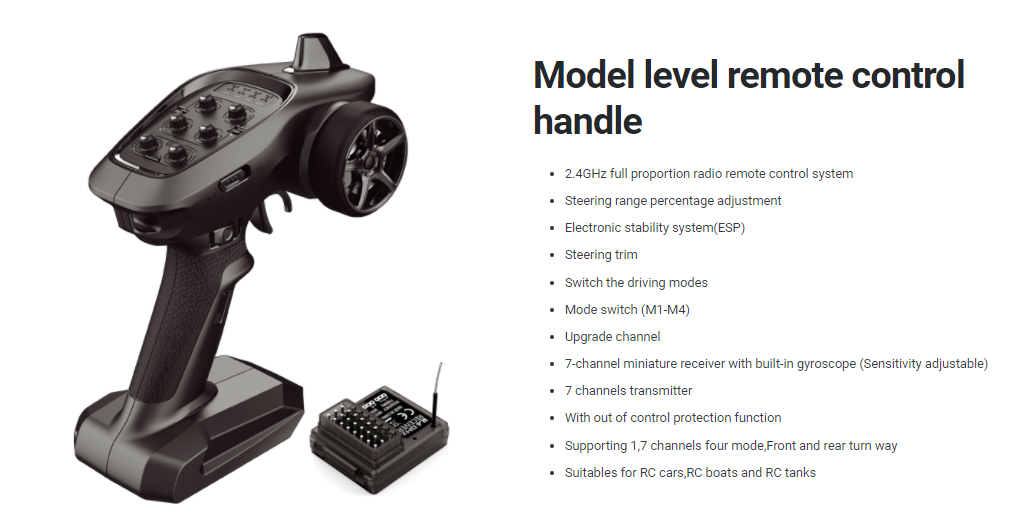

2.4GHz 7 channels radio system
Maintenance tools

What You’ll Need:
Blaster Desert Truck accepts a single 2s Lipo battery or dual 2s Lipo batteries or dual 3s Lipo batteries

Recommend to use a charger for Easy and fast charging performance

AA Alkaline Batteries
Four AA alkaline batteries for the transmitter


Model No: UD1002

Length: 600mm

Width: 300mm

Height: 250mm

Rear wheel track: 249mm

Front wheel track: 240mm

Wheel base:345mm

Bauchfreiheit: 56mm

Weight: 3.9KG

Front Shock Length: 115mm

Front Threaded Shock Length: 112mm

Rear Shock Length: 115mm

Rear Threaded Shock Length: 112mm

Tires(pre-glued): 115mm × 45mm

Speed Control: Included

Motor(electronic): 2600kV

Transmission: Direct-drive with Torque-Biasing Center Drive

Overall Drive Ratio: 17.89:1

Front Differential Type: Sealed, 4-gear

Rear Differential Type: Locked spool

Center Differential Type: Sealed, 4-gear (1M weight oil)

Chassis Structure/Material: Inverted composite tub

Brake Type: Electronic

Drive System: Shaft driven 4WD

Steering: Dual bellcranks with ball bearings

Radio System: 7-channel transmitter with receiver

Servos: Included

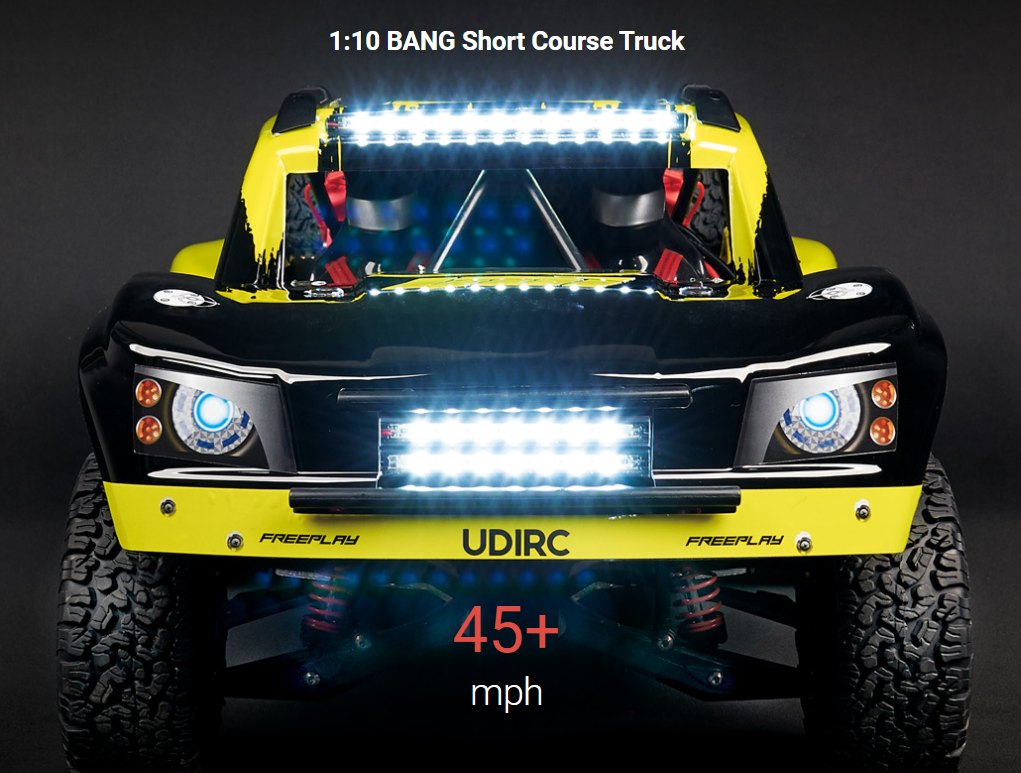

Top Speed(stock gearing): 2s LiPo – 35+ mph,3s LiPo – 45+ mph

Skill Level: 5

Battery Compartment: 140×45×30mm

Input Voltage(cells): 3s Lipo(max:11.1volts)

Case Size: 129mm x 44mm x 40mm


BEC Voltage: 6.0 伏

BEC Current Continuous: 10A

BEC Current Peak: 20A

Reverse Delay: Yes with lockout

Low Voltage Detection(LVD): Yes, programmable

Ports: TX Input, Auxiliary Fan

Brand UDI RC
