SAVOX Digital Super Torque 50kg/t Servo SAV-SW2290SG-BE
More infoSAVOX Digital Super Torque 50kg/t Servo SAV-SW2290SG-BE
The powerful "Monster" performance series from Savox utilize an all aluminum case, unique brushless motor and controller technology to boost power up to 35% over previous generation servos.
| Spline size: | 25T Spline |
| Servo Technology: | Digital High Voltage |
| Servo Case: | Aluminium |
| Input Voltage (V): | 6.0V - 8.4V |
| Water Protection: | Waterproof |
| Motor Type: | Brushless Motor |
| Gear Material: | Steel Gears |
| Ball Beared: | Ball Beared |

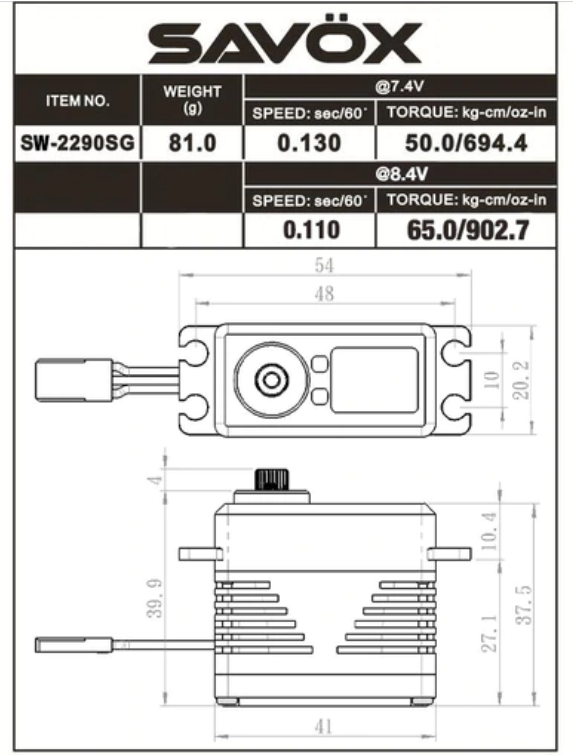

| Length (mm): | 40.3 mm |
| Width (mm): | 20.2 mm |
| Height (mm): | 38.7 mm |
| Weight (g): | 81.0 g |
| Speed 60°/Sec @ 6.0V: | 0.16/60° sec |
| Speed 60°/Sec @ 7.4V: | 0.13/60° sec |
| Speed 60°/Sec @ 8.4V: | 0.11/60° sec |
| Torque kg/cm @ 6.0V: | 45.0kg/624.9oz-in |
| Torque kg/cm @ 7.4V: | 55.0kg/763.8oz-in |
| Torque kg/cm @ 8.4V: | 70.0kg/972.1oz-in |
| Connector type: | JR |
(SAV-SW2290SG-BE)
(SAV-SW2290SG-BE)
| SKU | SAV-SW2290SG-BE |
| Barcode # | 4710006993867 |
| Brand | SAVOX |
| Shipping Weight | 0.0500kg |
