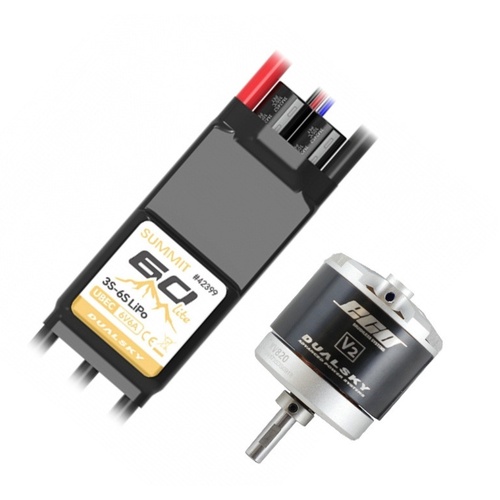

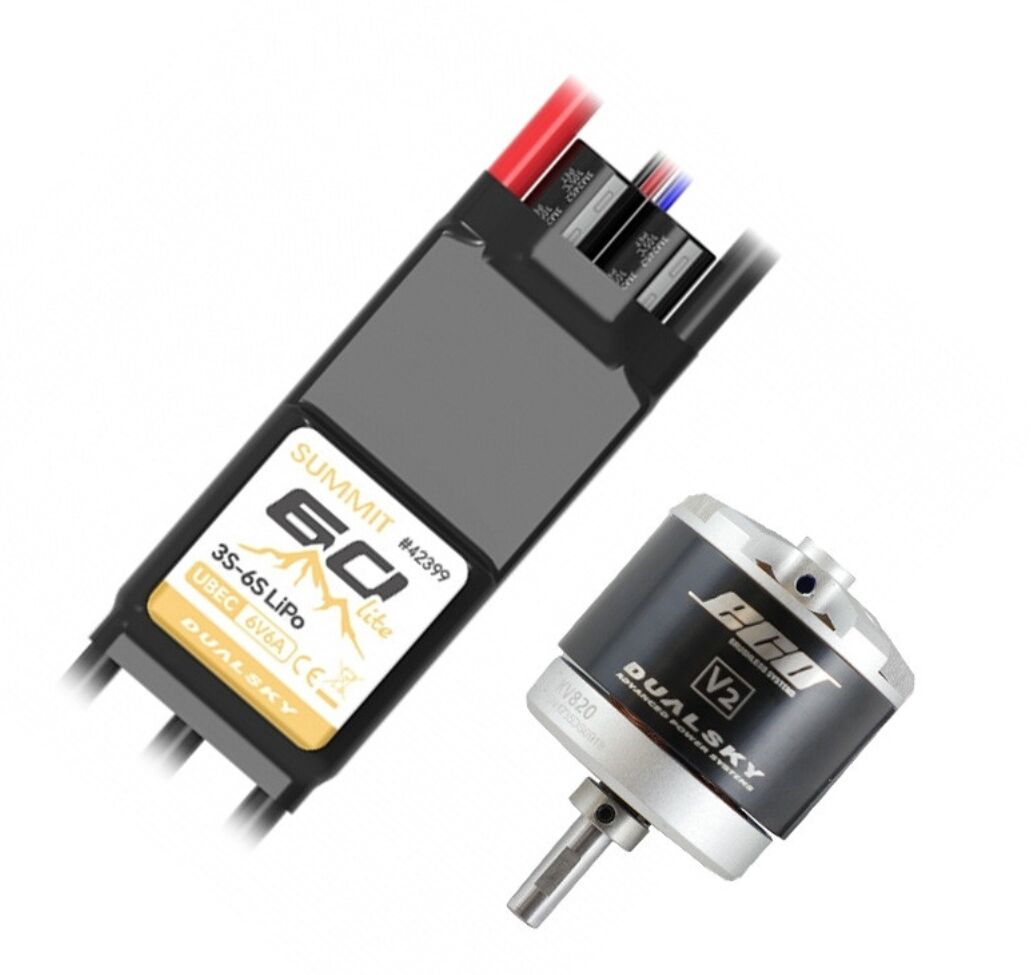

• Includes new generation Summit Lite ESC
  • Selectable rotation direction
  • Program the ESC using the Dualsky USB Link Multi Purpose (DSB22382, sold separately)
  • Integrated high-current UBEC with excellent peak performance
  • Low voltage, overheat, throttle, current, and low RPM protection.

Motor Specs

KV
820
Turns
5
Weight (g)
210
Dimensions(D x L) [mm]
43.2x42.4
Slots & Poles
12N14P
Ri (mOhm)
18.7
lo @10V (A)
1.7
No. of Cells (LiPo)
3.4
Max. Efficiency Current [A]
40
Max. Burst Current (15S) [A]
65
Max. Power(15S) [W]
1040
Max. Torque [N*M]
0.91
Shaft diameter(mm)
6
Mounting holes pitch
25/25
Input Connectors
GC4.0
Recommended ESC
XC-65-Lite or XC6018BA
Propeller
4S: 13x8E, 14x76, 15x6E
Class
.50 4-stroke or .32-.40 2-stroke (40E)

ESC Specs

Dimensions (LxWxH)
66 x 25 x 10.7mm (w/o wire)
Weight (w/ wire)
49g
Number of Cells
3S-6S LiPo, 11.1V-22.2V
Continuous Current
60A
Burst Current
80A
Resistance (Ri) (mOhm)
~1.4 milliohms
Battery eliminate circuit BEC
6.0V, Switching mode, 6A const./10A peaks
Signal & Frequency
Default = PWM(upto 333Hz), THR calibration Enabled
Timing System
Programmable (Default=16°)
Motor Direction
Normal - Reversed - Bidirectional (4D flight & EDF Braking)
Programming
USBLINK MP (BLHeli32_Suite)
Start Power
100% (Programmable)
Work Frequency
LOW = 24KHZ, High = 24KHz (Programmable)
Telemetry
ON (Auto telemetry enabled, protocol=KISS)
Energy Recovery
YES (Default-Disable, freewheel)
Brake On Stop
Default=OFF (Adjustable)
Maximum Speeds
PWM at 8KHz: 510k erpm, Multishot at 16kHz: 450k erpm / Dshot at 8kHz: 470k erpm / Dshot at 16kHz with sine: 280k erpm
Low Voltage Protection
Programmable (Default=3.00V/cell)
Acceleration
Default =125ms (Programmable)
Overheat Protection
YES(Default=140 C)
Water & Dust Proof
IP43
Beacon Beeps
YES, 20 Mins
Input Wires
14AWG, 150mm
Wires to Motor
14AWG, 80mm w/ DB4F
Signal Wires
JR, 350mm + 1pin telemetry
Tested Motors
Dualsky EG, EA V3 series, Dualsky EVO V2 line, Dualsky GA line. * Please follow the parameter compatibility requirements of the motor
Applications
Middle class electric powered gliders, 3D/ sports aircraft, F3As and Fixed wing UAVs/ eVOLs
SKU DSB59312
Barcode # 6941047193123
Brand DUALSKY
