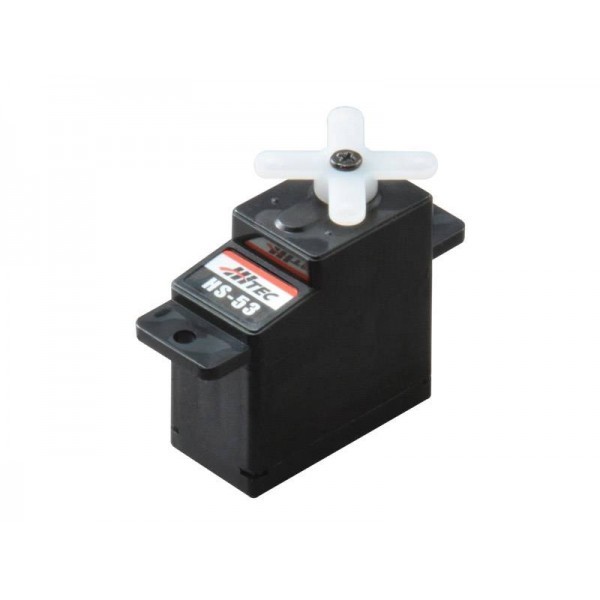

The HS-53 is our economical, feather servo designed to compete head to head with the influx of low cost servos while still maintaining Hitec’s renowned quality. Designed with a durable nylon gear train and an efficient three-pole cored motor, this light-weight servo is a terrific fit for small power planes and gliders. Priced right, it is sure to become a universal favorite!
  • Durable Nylon Gears
  • ThreePole Cored Motor
  • FeatherWeight
  • Economically Priced
Operating Voltage Range (Volts DC)
4.8V ~ 6.0V
Speed (Second @ 60°)
0.16 ~ 0.13
Maximum Torque Range oz. / in.
16.7 ~ 20.8
Maximum Torque Range kg. / cm.
1.2 ~ 1.5
Current Draw at Idle
10 mA
No Load Operating Current Draw
125 mA
Stall Current Draw
550 mA
Dead Band Width
5 µs
Dimensions (Inches)
1.12 x 0.46 x 0.95
Weight (Ounces)
0.28
Weight (Gram)
8
Circuit Type
HT7003 Analog SMT
Motor Type
Cored Metal Brush
Gear Material
Nylon
Bearing Type
None
Output Shaft (type / Ømm)
Feather 15 / 8
Case Material
Plastic
Dust / Water Resistance
N / A
Connector Gauge (AWG) / Strand Count
28 / 20
SKU HRC31053
Brand Hitec RCD
