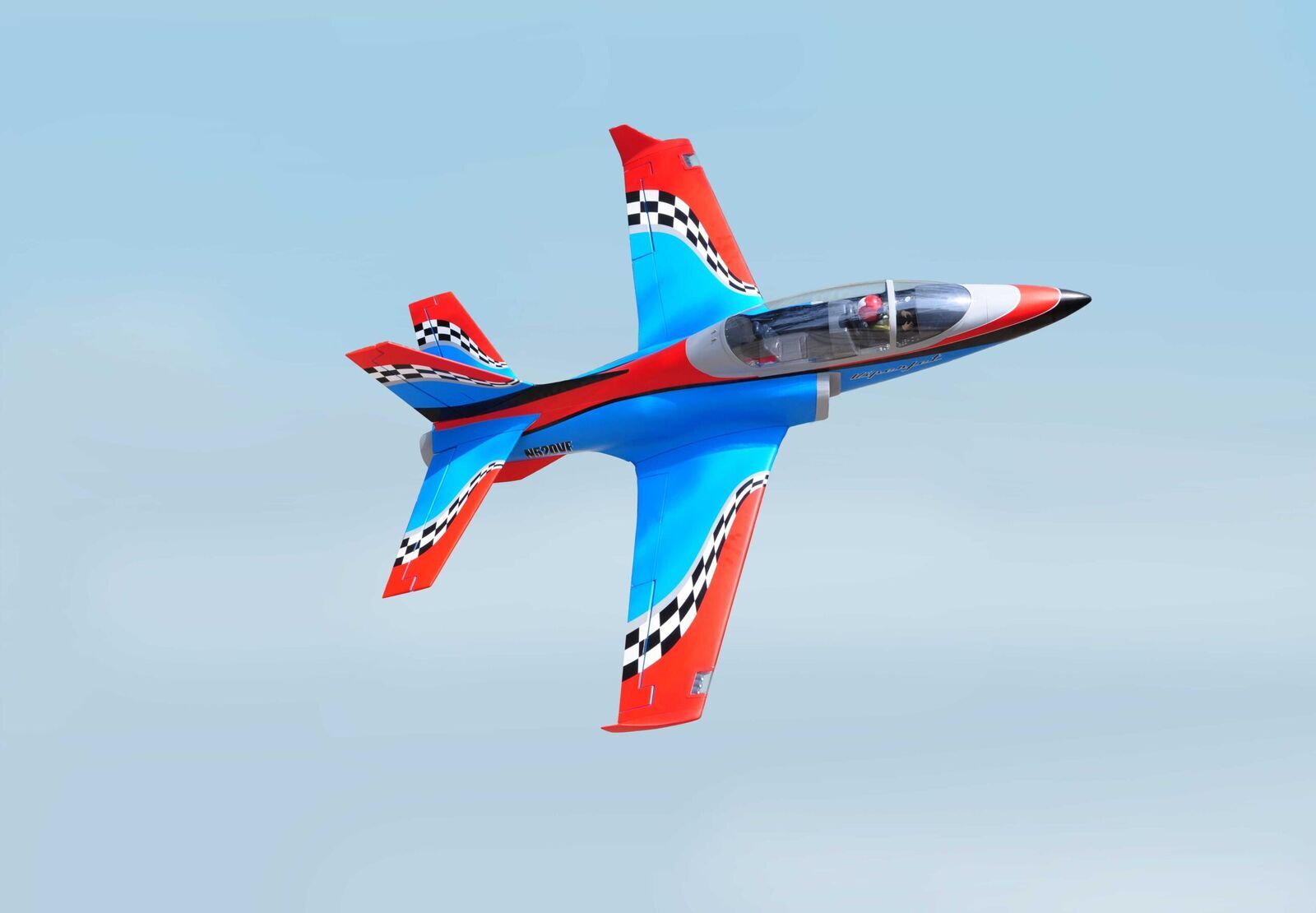

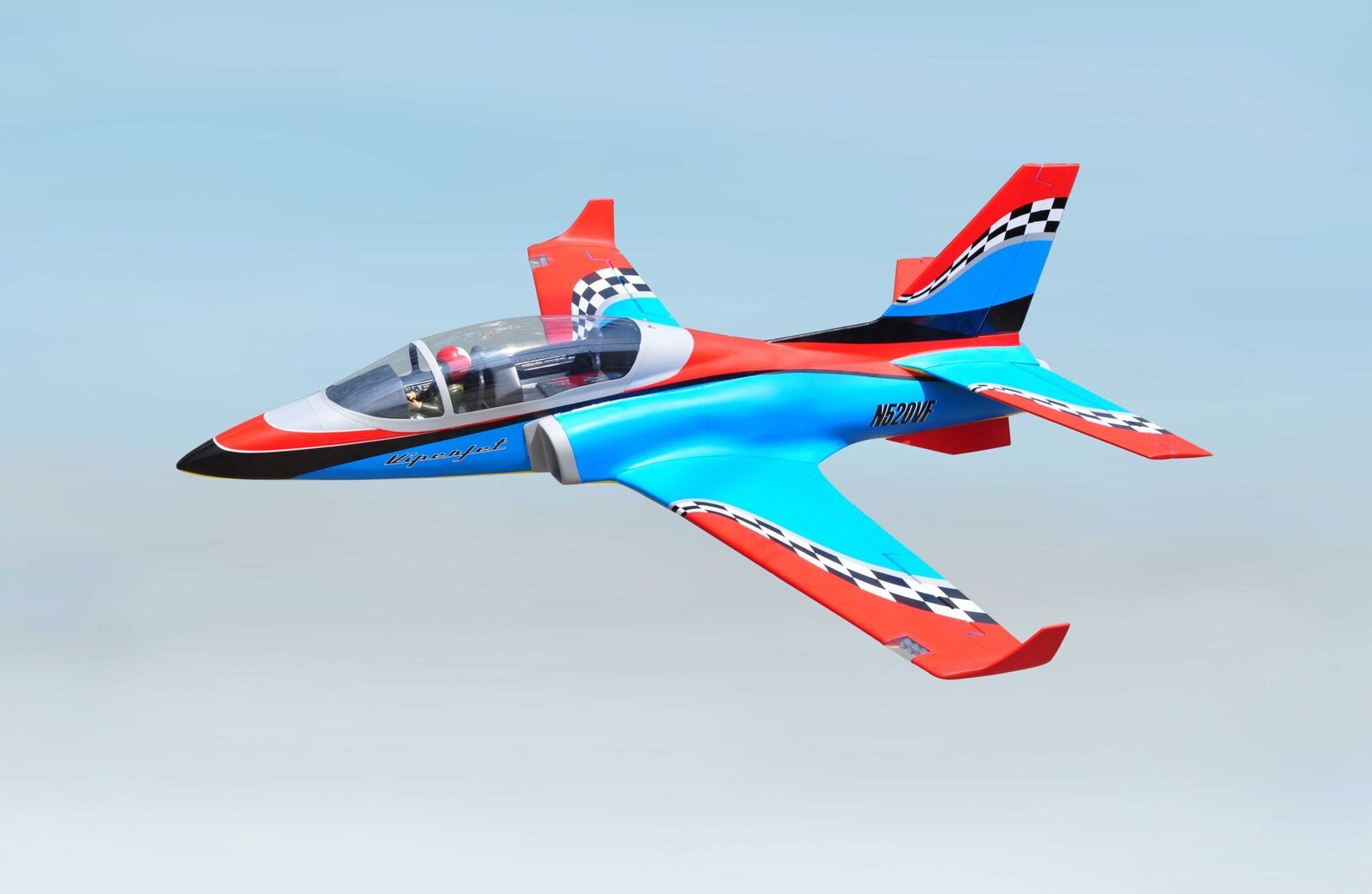

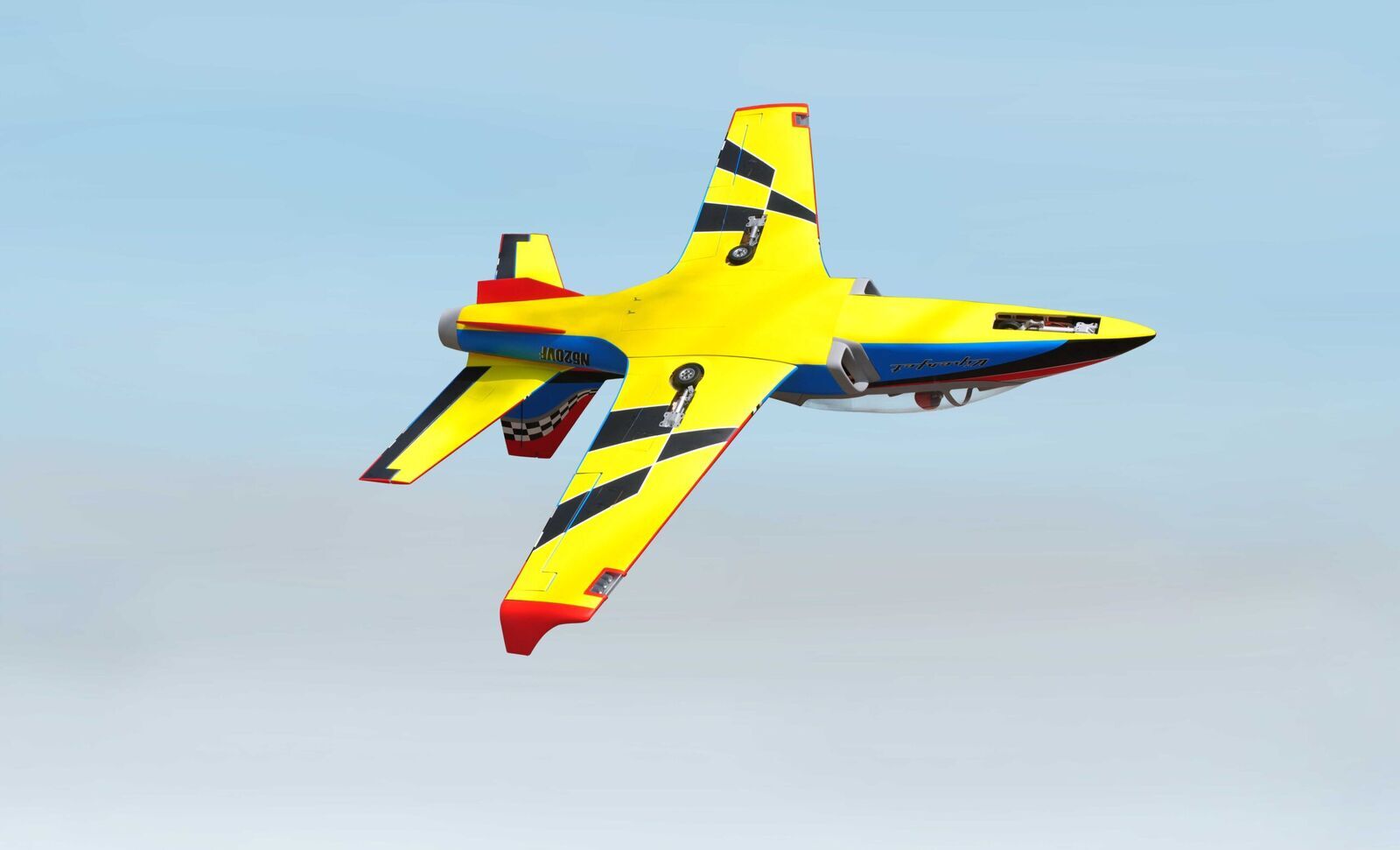

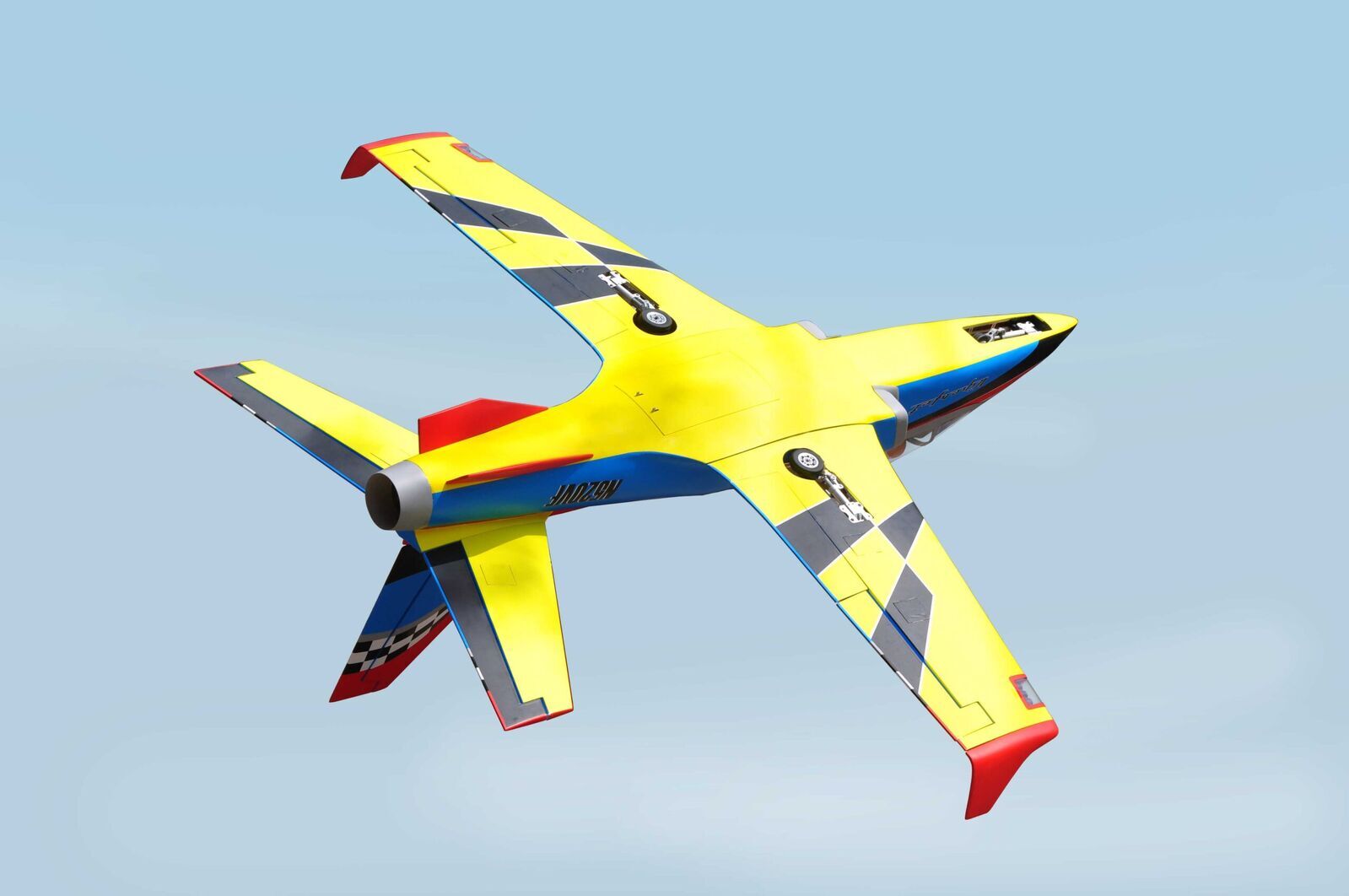

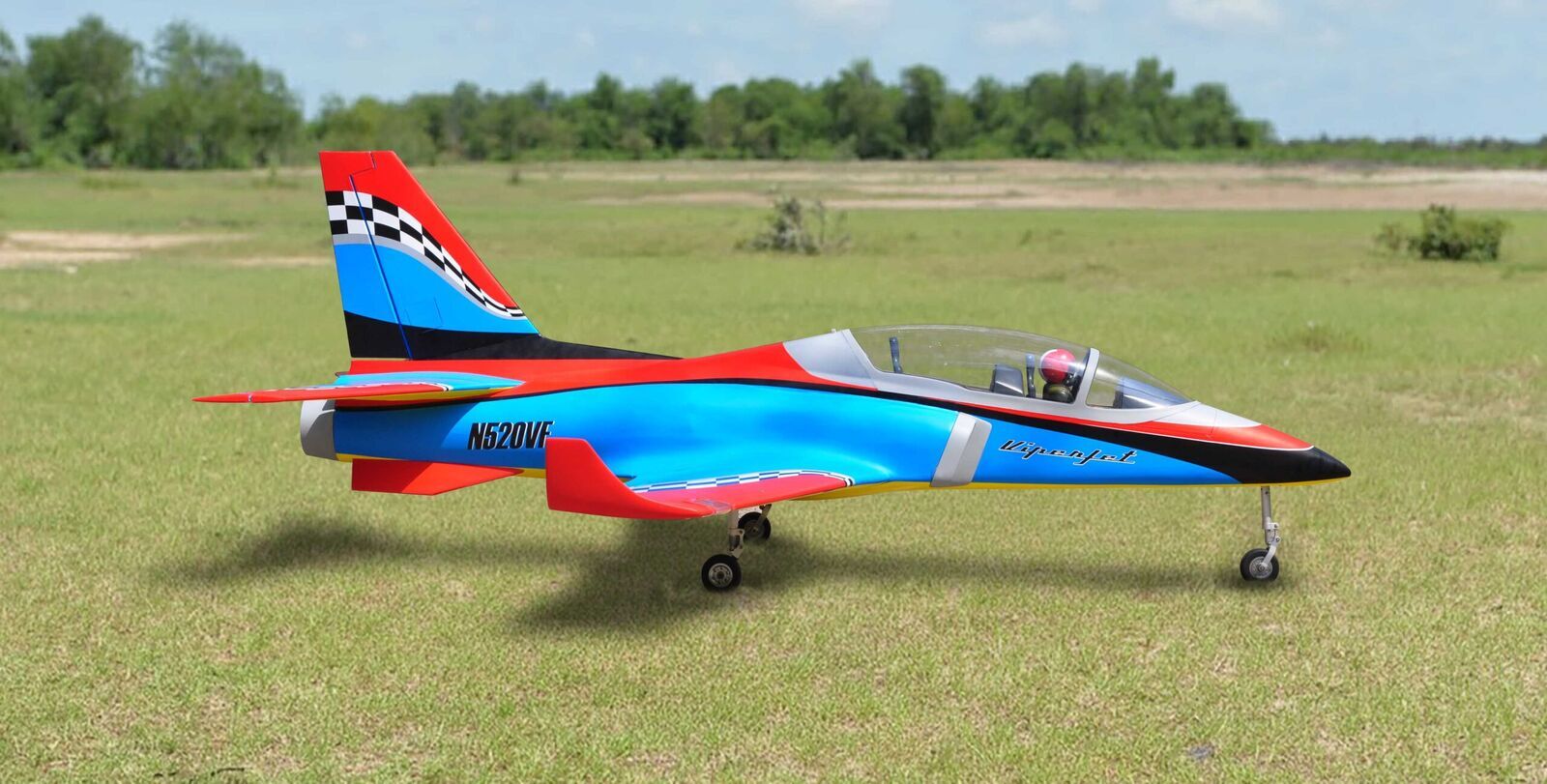

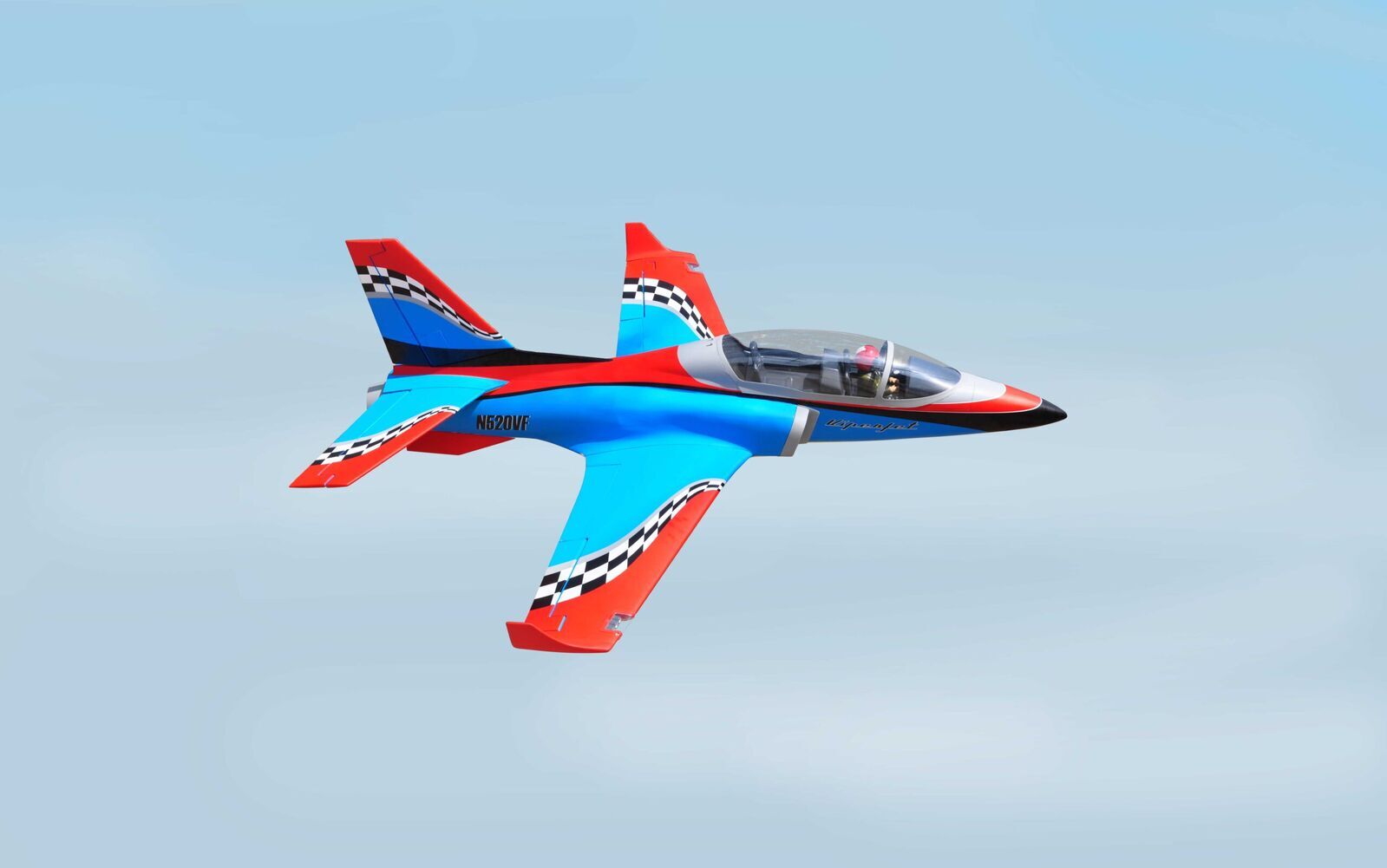

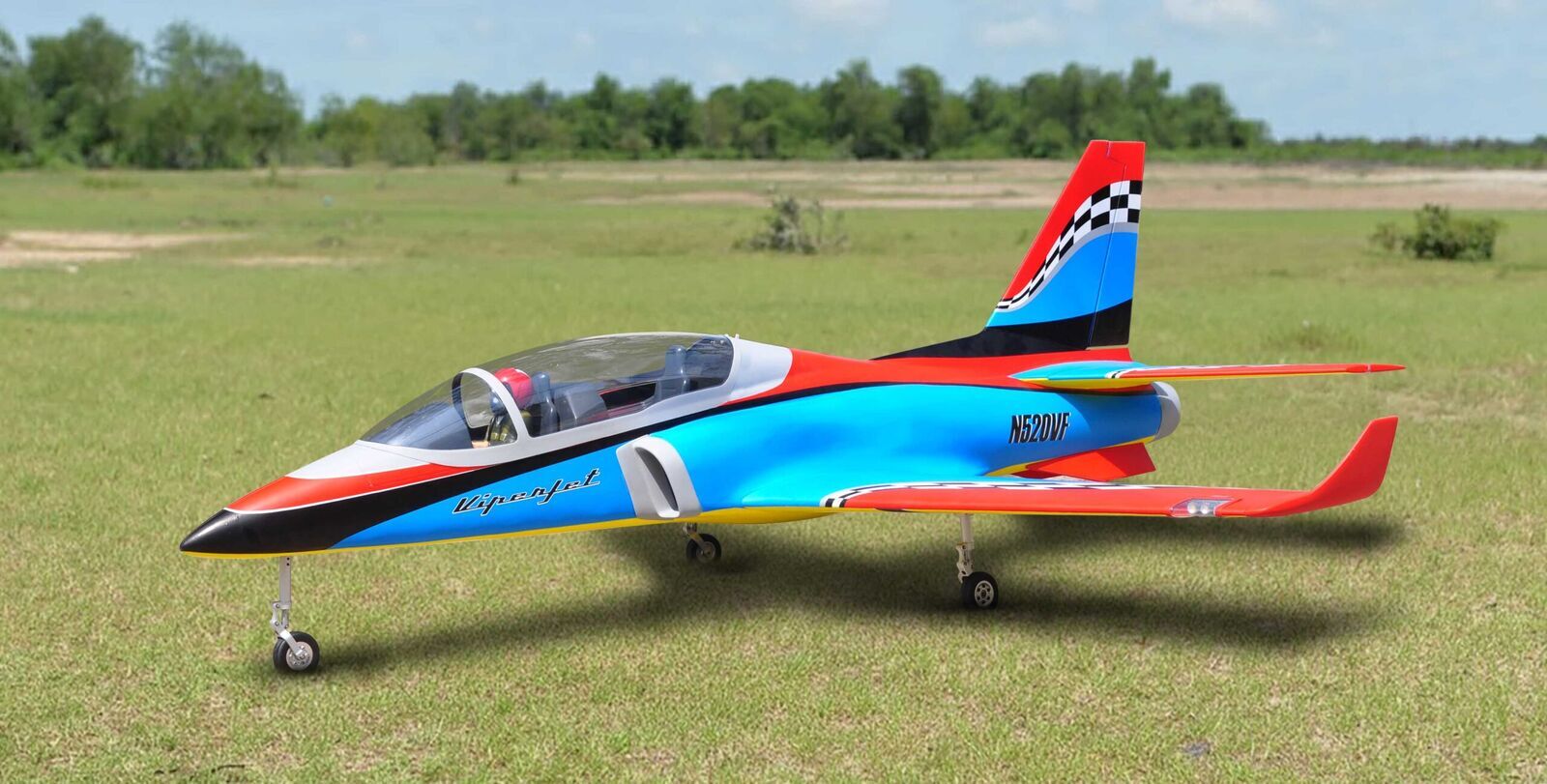

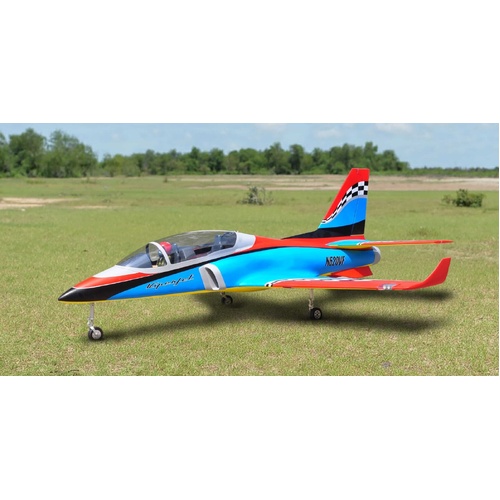

VIPER JET MKII 1885mm 74.2” Electric Retract EDF 120MM
Item code: BH201
PRODUCT DATA:
– Wingspan: 1885mm (74.21 in)
– Length: 1820mm (71.65 in)
– Flying weight: 8900-9100gr
– Wing area: 62.2 dm2
– Wing loading: 143.1g/dm2.
–  Wing type: Naca Airfoil.
– Retract gear type: Electric retract main gear, nose gear  with oleo struts and controller box (included).

Parts listing required (not included):
–  Radio: 8 channels minimum
–  Servo: 8 standard high torque servos, size: (33 x 17)mm.
–  Engine: EDF 120mm.
–  Battery: 10S – 12S LIPO  37V- 44.4 V.
–  ESC: 160A.

Recommended EDF and Battery set up (not included):

–  Engine: Ducted Fan EDF JETFAN-120 eco Ejets+ HET 800-68-685.
 –  Battery: 12S LIPO – 44.4 V  ≥ 6000mAh 70C.
–  Or Engine: Ducted Fan EDF Schubeler DS-86-AXI HDS 120mm + TP 5660-9D motor.
–  Battery: 10S LIPO – 37V  ≥ 6000mAh 70C.
–  ESC: 160A Phoenix Castle.
FEATURES:
– Electric Retract with CNC Full Metal Suspension Fork Gear are included
– Electric Controller Box Retract Gear are included
– Separate fuselage and wing structure allows compact transportation
– All balsa – ply wood construction.
– Covered with film polyester, providing durability, lightness, and ease of repair
– Full-depth cockpit and instrument panel and pilot included
–  New Smart lock quick assembly system for wings, stabiliser without any tools
– Removable canopy for easy change lipo battery and set up radio
– Superb flying characteristics, plus an accurate scale outline
– High-quality hardware package included
ENGINE AND SERVO RECOMMENDED ( NOT INCUDED WITH THE KIT )
– EDF 120mm (x1)

(BH-205)

SKU BH-205
Brand BLACK HORSE MODELS
